DMX Series Digital Mixing Console-SPIRIT, professional sound system, loudspeaker, amplifier

Features

· Linux-Based Operating System for secure, stable and fast performance with 17-second startup.

· Professional DSP Processing with Noise Gate, Parametric EQ, Compressor, Filters, Delay, Phase Adjustment, Feedback Suppression and MIC Priority Setting for flexible input and output control.

· Motorized Faders with Scene Memory for smooth operation and quick recall

· Dual Effects Engine & 96-Channel RTA with built-in signal generator for professional live sound applications. .

· Bluetooth 5.0 & Dual USB OTG Audio Interface supporting music playback, live streaming and mobile charging.

· Advanced Scene Management with 100 user scenes, 8 DCA groups and 8 mute groups for efficient workflow.

· Multi-Platform Remote Control via PC software, mobile APP, UDP and RS232 central control.

· Ideal for Live Streaming, Conferences, Education, Events, Performances, and Commercial Audio Applications.

Model	DMX-1216	DMX-1616		DMX-2016
Display	7" Touch Screen 1024×600	7" Touch Screen 1024×600		10.1" Touch Screen 1280×800
Motorized Faders	8 × 100 mm	9 × 100 mm		11 × 100 mm

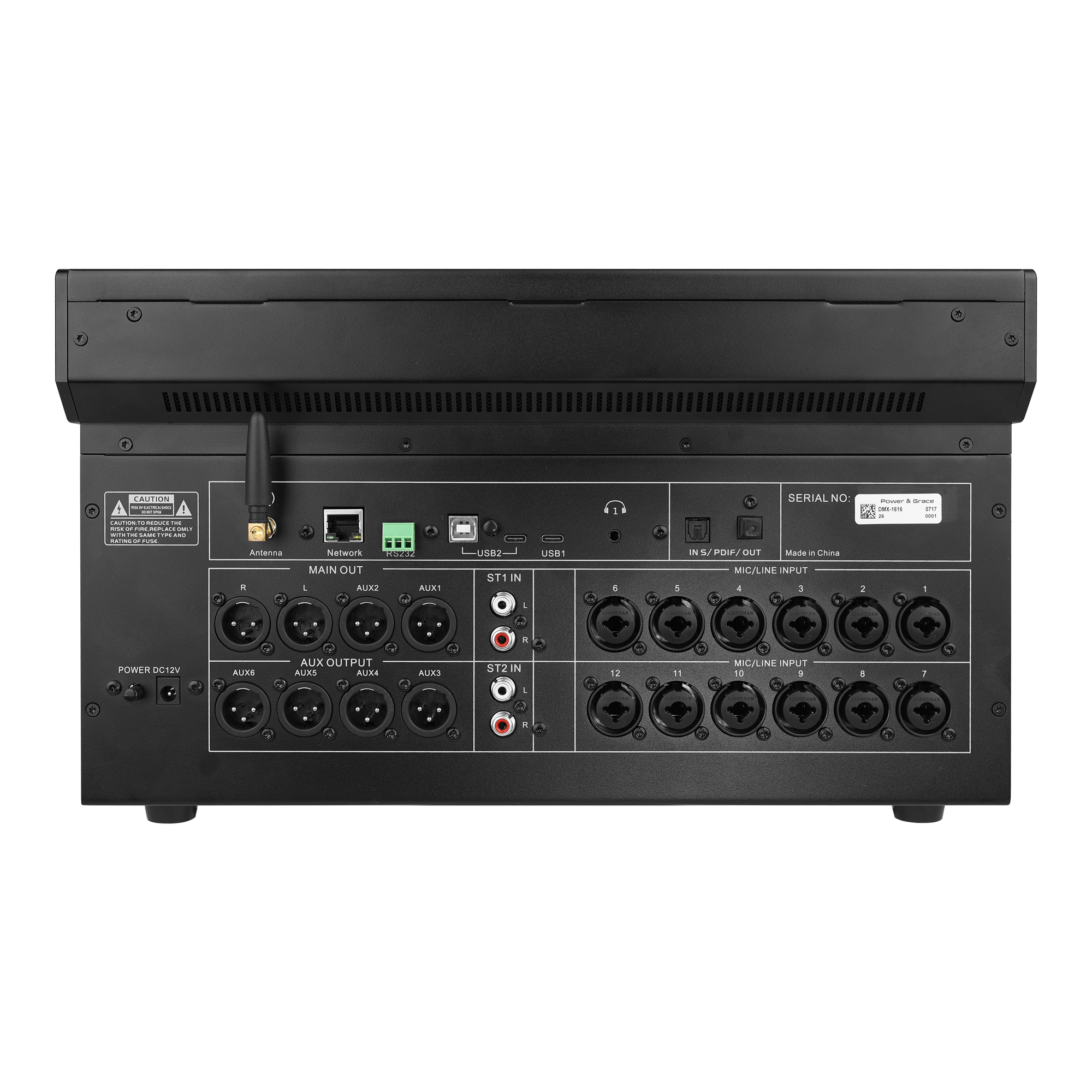

Analog Inputs	12 (8 x MIC/Line inputs + 2 x stereo analog inputs)	16 (12 x MIC/Line inputs + 2 x stereo analog inputs)		20 (16 x MIC/Line inputs + 2 x stereo analog inputs)
Analog Outputs	12 (main output L, R, AUX1-6 auxiliary output x6, stereo headphone output x1, stereo headphone monitor output x1)
Digital Signal Outputs	4 (MP3 recording output x1, S/PDIF output x1, USB sound card recording output x2)
Operating System	Linux
CPU	5-Core 1.2GHz
Startup Time	17s
Phantom Power	+48V
Bluetooth	BT 5.0
Input PEQ	4-Band
Output PEQ	15-Band
Scene Memory	100
Remote Control	APP / PC / UDP / RS232
Power Supply	12V DC
Product Dimension	477x391x230mm		477x391x230mm		497x454x230mm

MetInfo enterprise content manager system | MetInfo CMS Power ＆ Grace DMX-1216 DMX-1616 DMX-2016 Datasheet 20260722.pdf

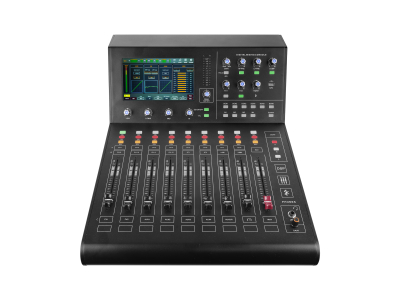

DMX Series Digital Mixing Console
