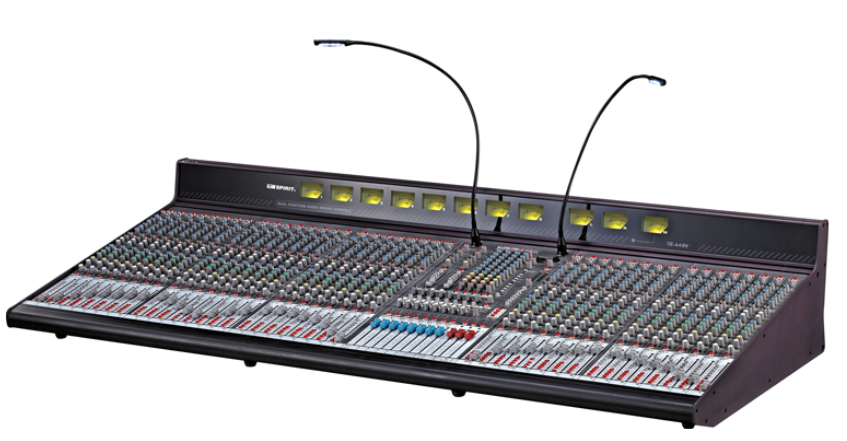

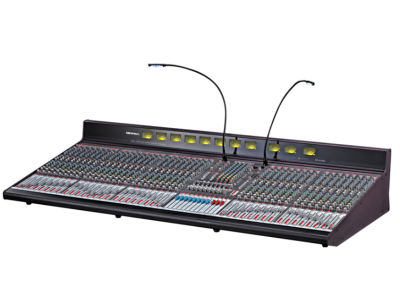

Model:： GE-288V, GE-368V, GE-448V
FEATURES:
● 28 / 36 / 44 channel
● 100mm dual-track metal wear on the number of faders
● +26dBu balanced XLR output
● 74dB preamplifier can accept up to 34dBu microphone or line input level
● mix pre-amplifier has ultra-low noise design
● Eight group outputs can be mixed LR channel and the central channel of the pan access to the M10 AUX channel stereo transmitter channel, with level control and pan
● Eight Group/ assisted the Aux1-8, the LR / the auxiliary Aux9-10 output path swap function
●11VU meter - Displays the main LR, eight-way grouping, Channel M, and monitor the PFL / AFL level
● 12 × 4 matrix
● Four mute grouping
● The central channel can be used as a central / ultra-low , about superposition or tuner speaker listening channel
● 4-way multi-functional stereo input channels, two for each channel prepared a microphone line input TRS connector
● 2-way dual stereo returns, Return, each of four superimposed or independent stereo returns (switch)
● The microphone input of the stereo channels can be connected by jumper matrix to send the background sound
● Built-in 1kHz sine / pink noise generator, provided to the line test and speaker system testing
● Dual function tune - the FOH or monitor mixer
● Independent phantom power and phase change-over switch
● 4 band EQ 2 band sweep
● 100Hz high-pass filter (HPF)
● With the level of fine-tuning and sharing of input matrix external input
● Recording through the channel direct output port
● Flexible and unrestricted fader of each channel before / after the auxiliary output selector switch
● All the main volume fader with mute button
● Front panel EQ, pre / post selector switch by the custom
● The recorder can access to the left and right channel and monitor channel
● Internal communication signal accessible to all output channels
● Nut fastening potentiometer type circuit board separate installation process
● With 4-pin XLR lamp holder can be inserted light-emitting diode lights
● Dual power supply system with backup function
