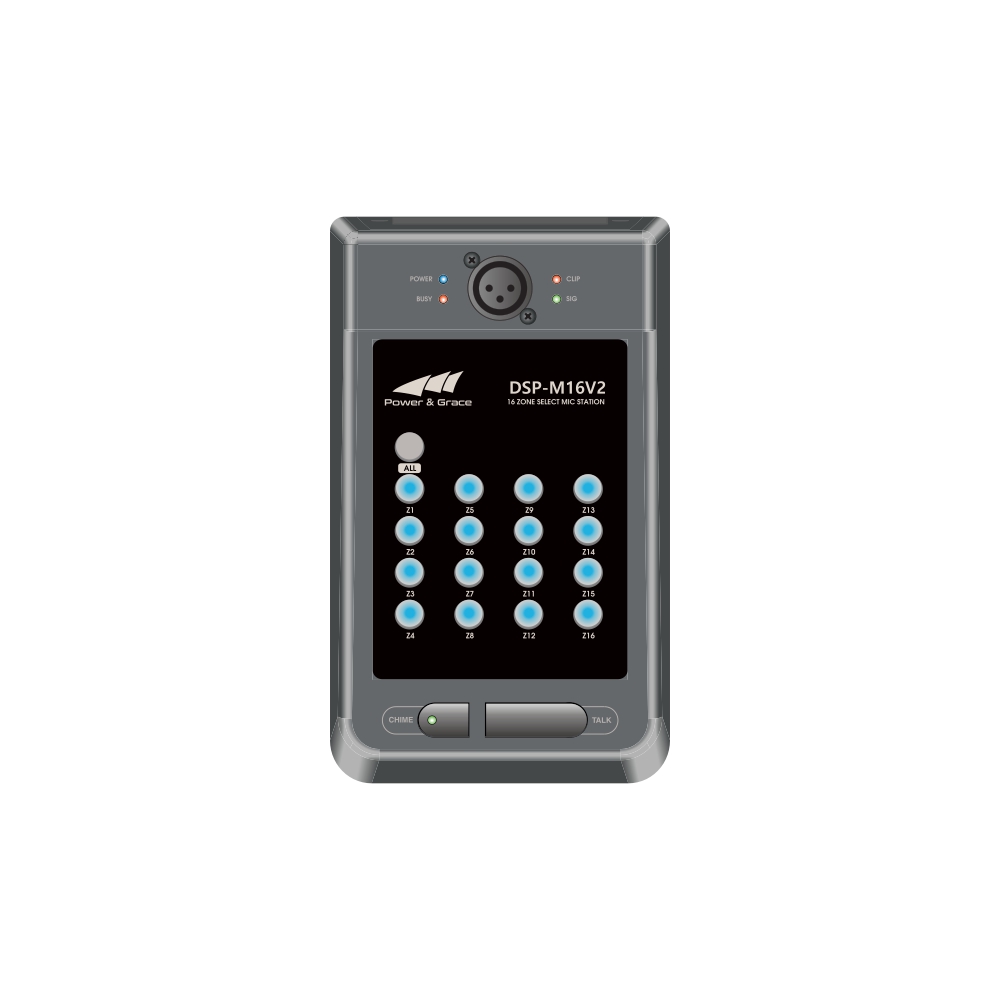

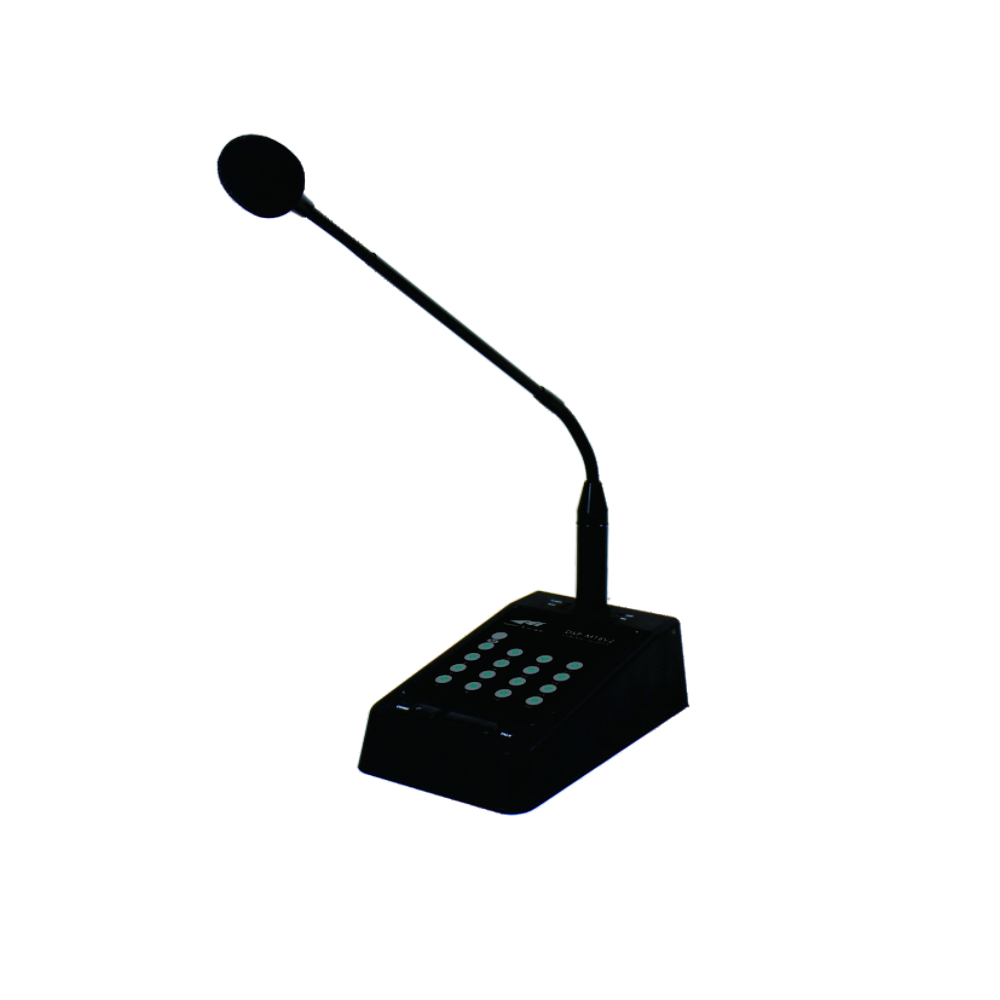

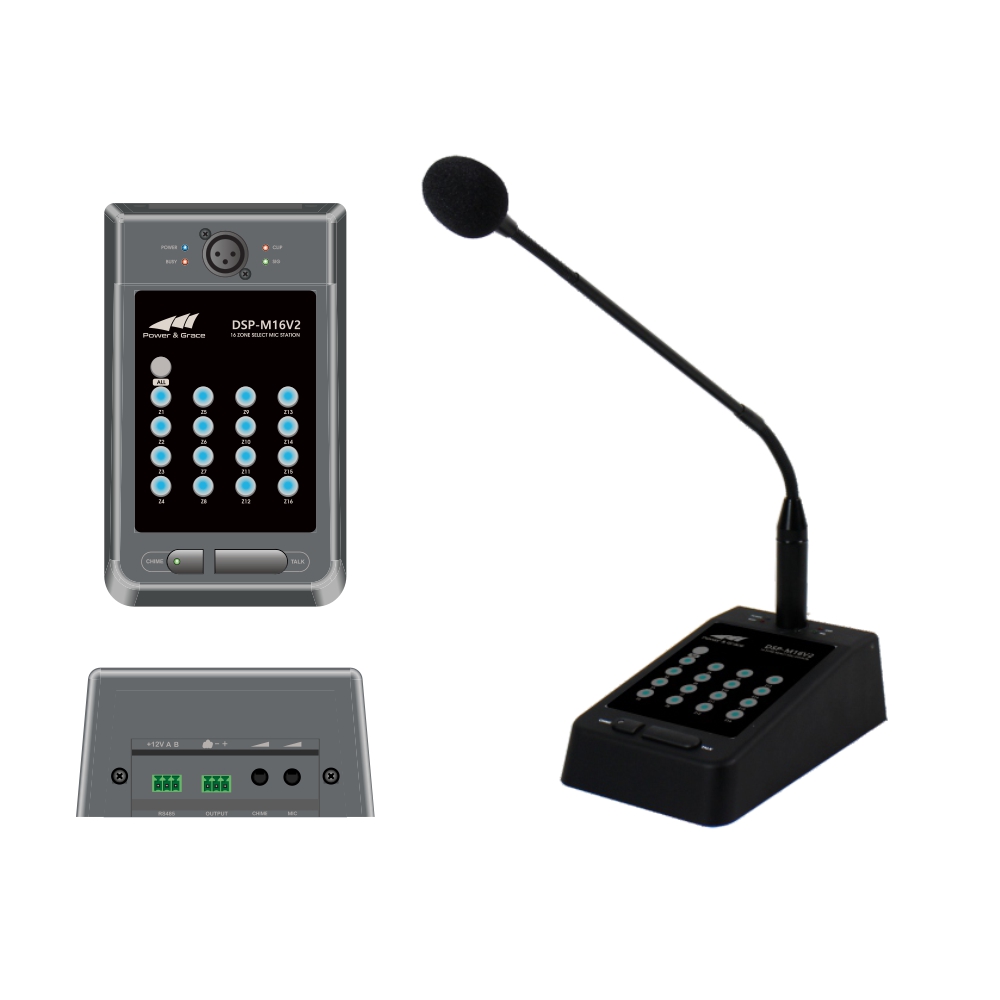

16-Zone Paing Microphone Station

Model:： DSP-M16V2

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

16 ZONE Remote Microphone Station for DSP-1616ND2, DSP-1616ND3,DSP-1616N2

● Controls

Zone selector switches for Z1~Z16. Talk & Chime on/off.

Level control volume for MIC & Chime.

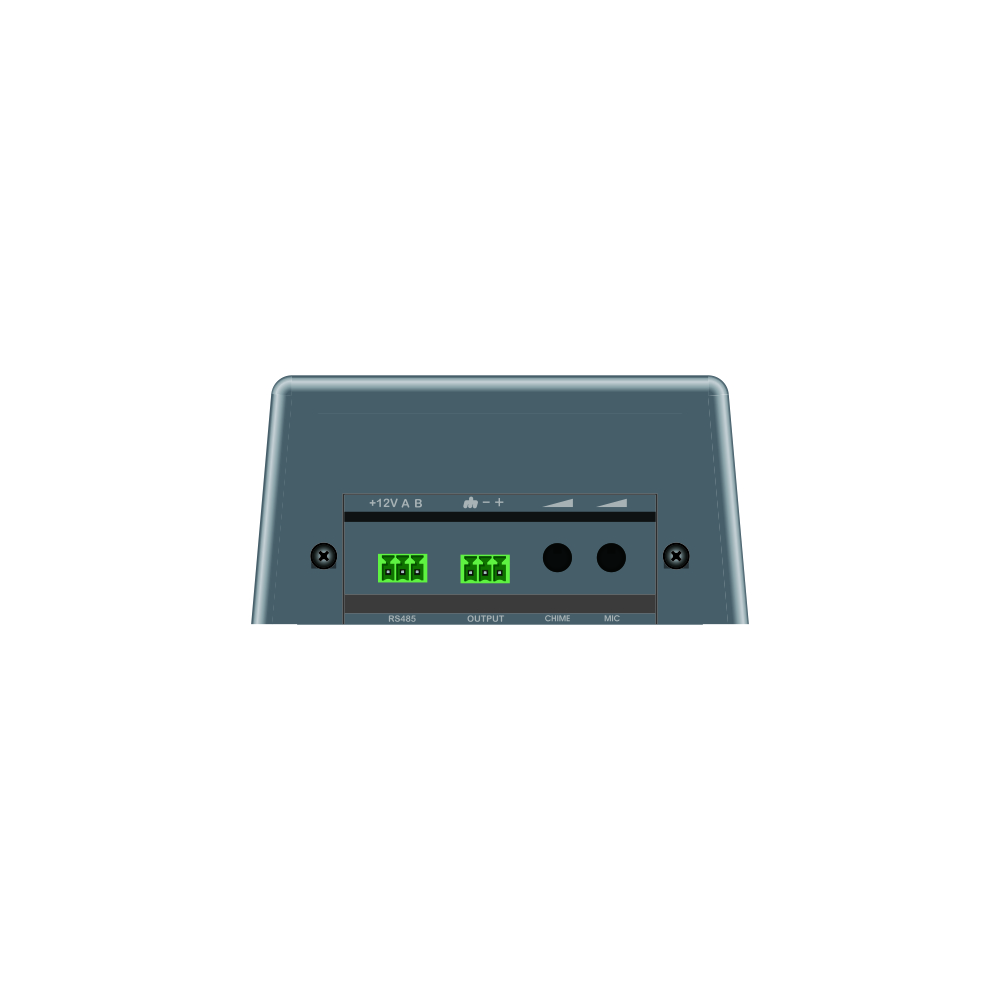

● Connectors

Rs485 communication with DSP-1616N2, DSP-1616ND2, DSP-1616ND3, DC12V input.

● Indicators

Power, Busy, Signal, Clip.

Model	DSP-M16V2
Rated Output Level / Impedance	0dB / 600Ω Balanced
Input sensitivity / Impedance	-36dB / 20kΩ Balanced
Frequency Response (-1dB)	80Hz -15kHz
T.H.D	<0.1%
Hum & Noise	> 90 dB
Number of Zone	16 Zones
Weight (Net)	750g
Dimensions (W x Hx D)	115 x 60 x 195mm (only body)

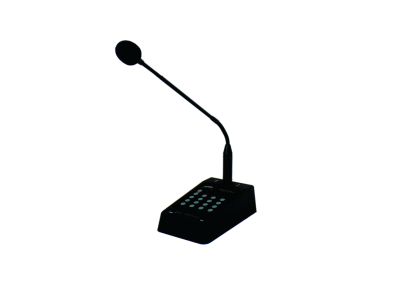

label: 16-Zone Paing Microphone Station
