8-Zone Paing Microphone Station

The DSP-880N2/DSP-880ND2/DSP-880ND3 audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose-built DSP processor. At the same time, it has independent FIR/AFC/ AEC/ ANS/ AGC gain sharing automatic mixing, threshold automatic mixing and other processing modules. The DSP-880N2/DSP-880ND2/DSP-880ND3 includes 8 mic/line analog inputs, 8 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.

Model:： DSP-M8V2

Quote

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

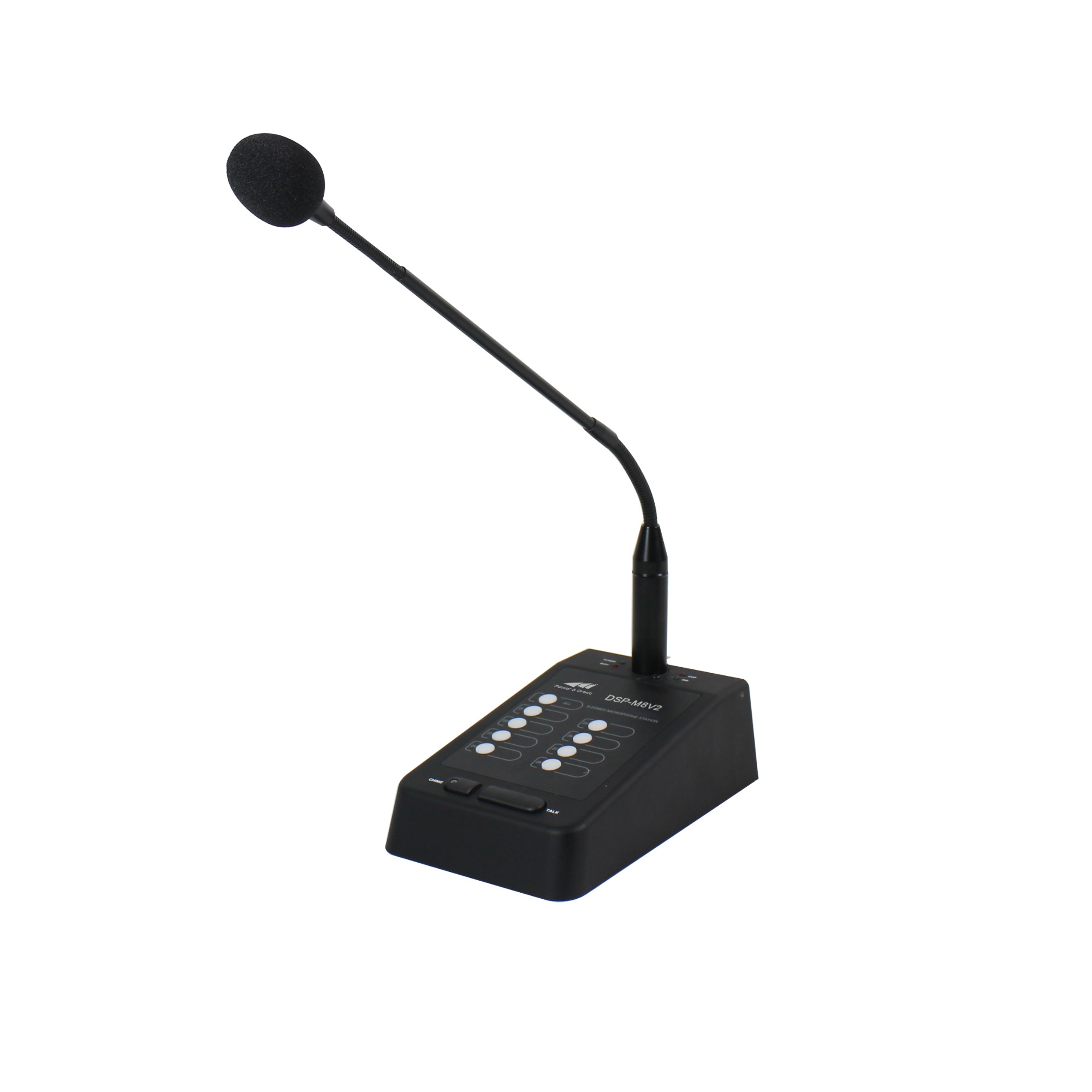

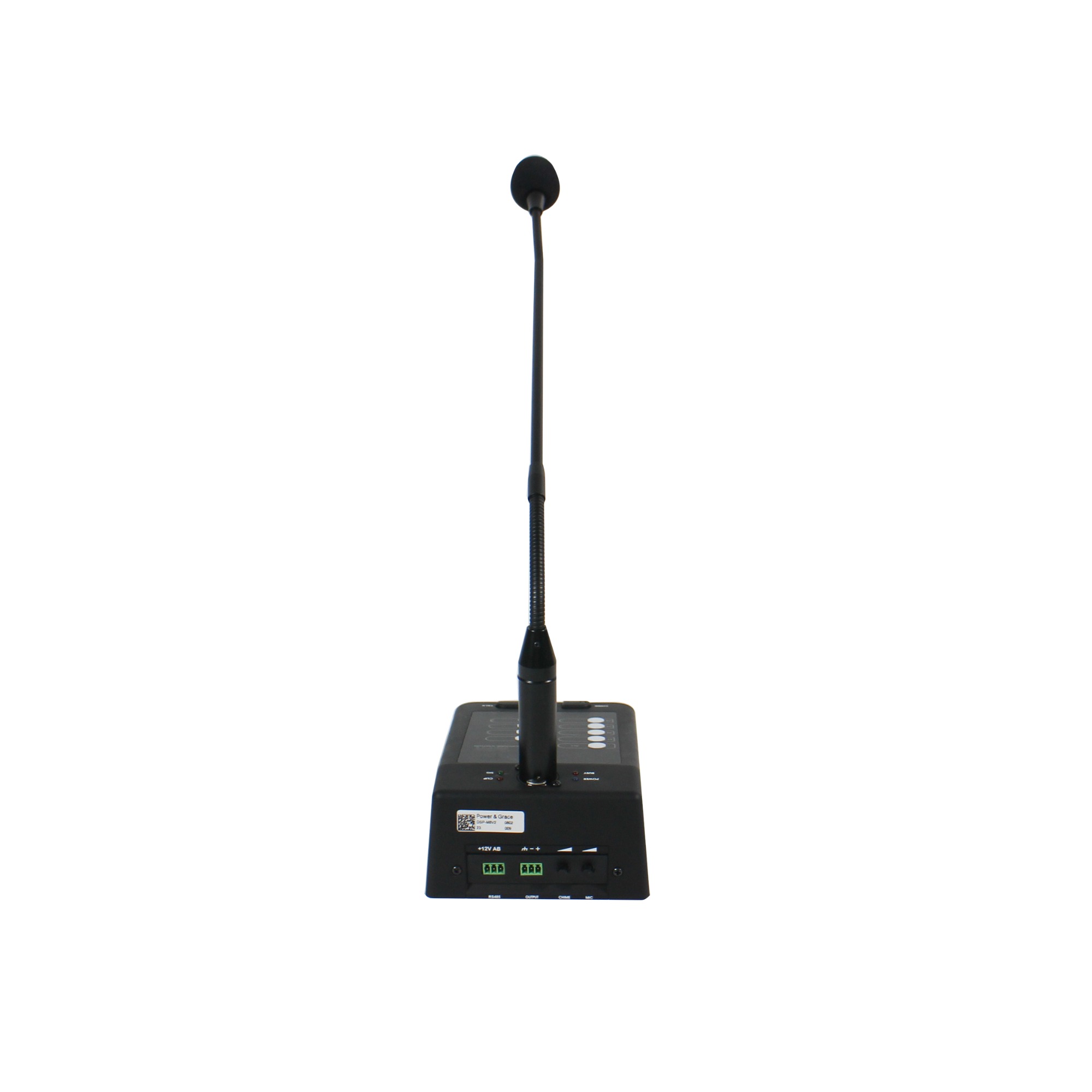

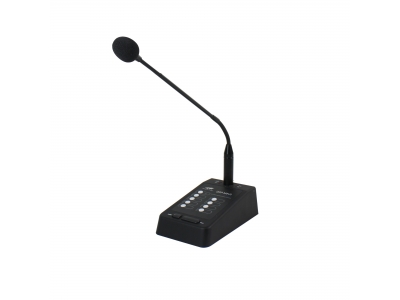

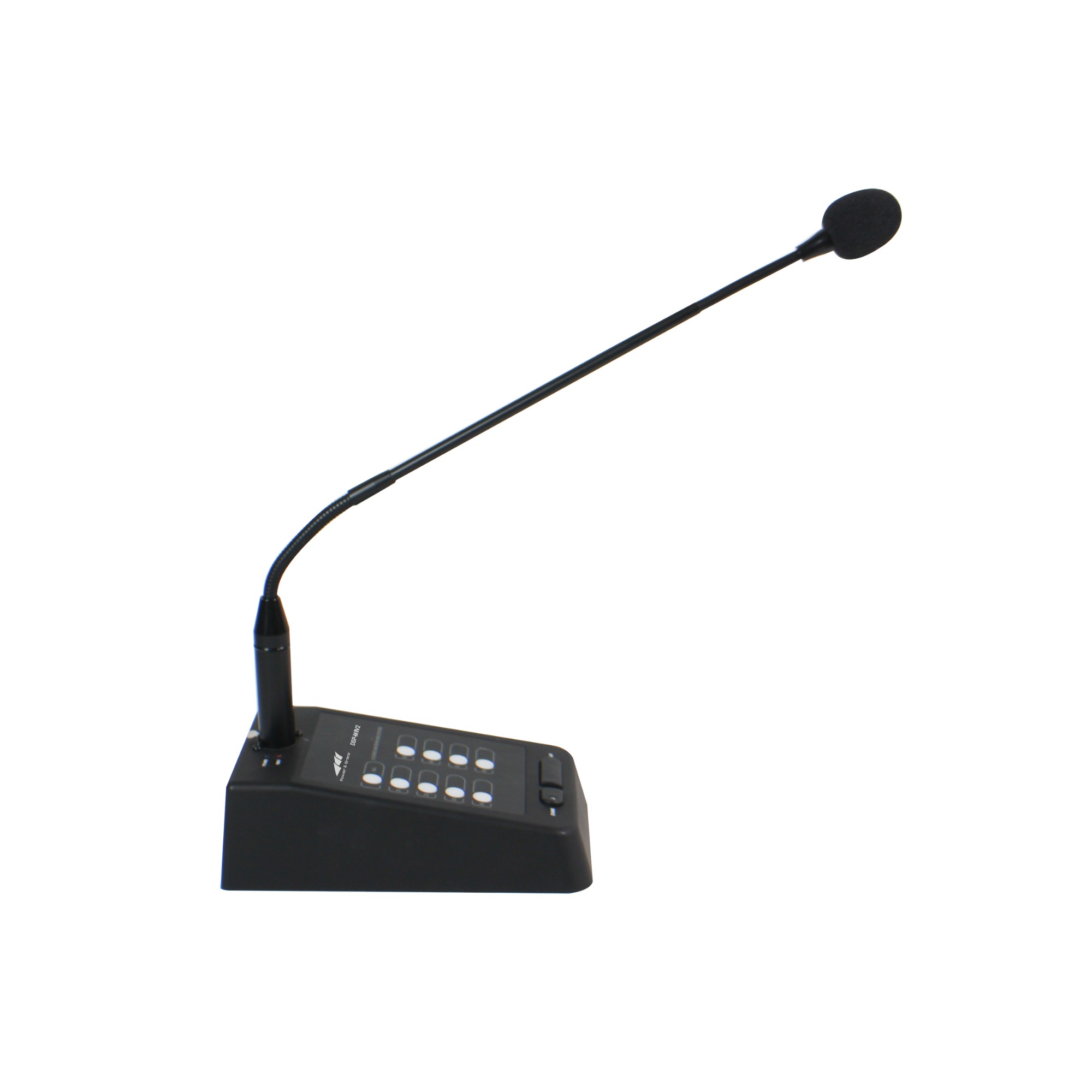

8 ZONE Remote Microphone Station for DSP-880ND2, DSP-880ND3,DSP-880N2

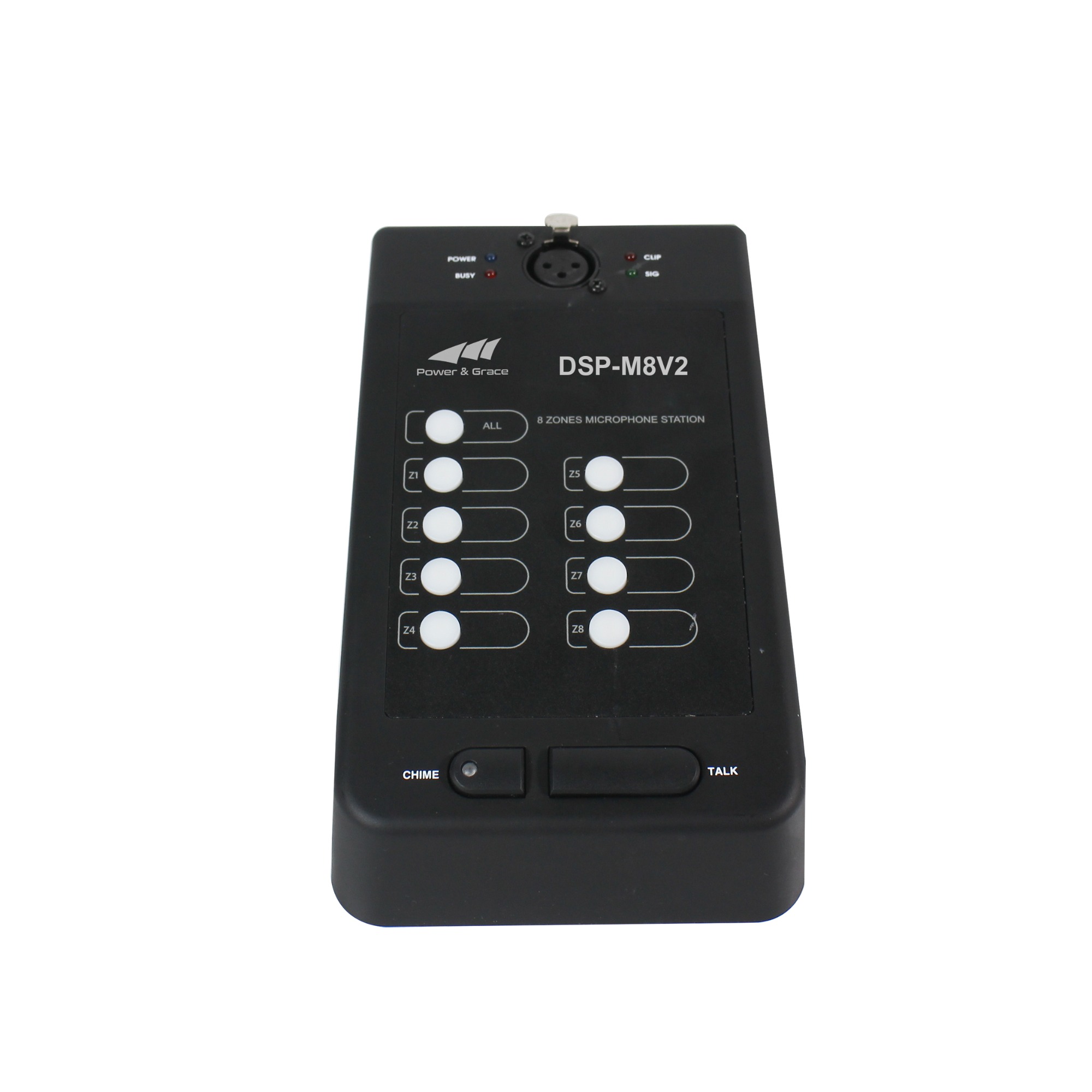

● Controls

Zone selector switches for Z1~Z8. Talk & Chime on/off.

Level control volume for MIC & Chime.

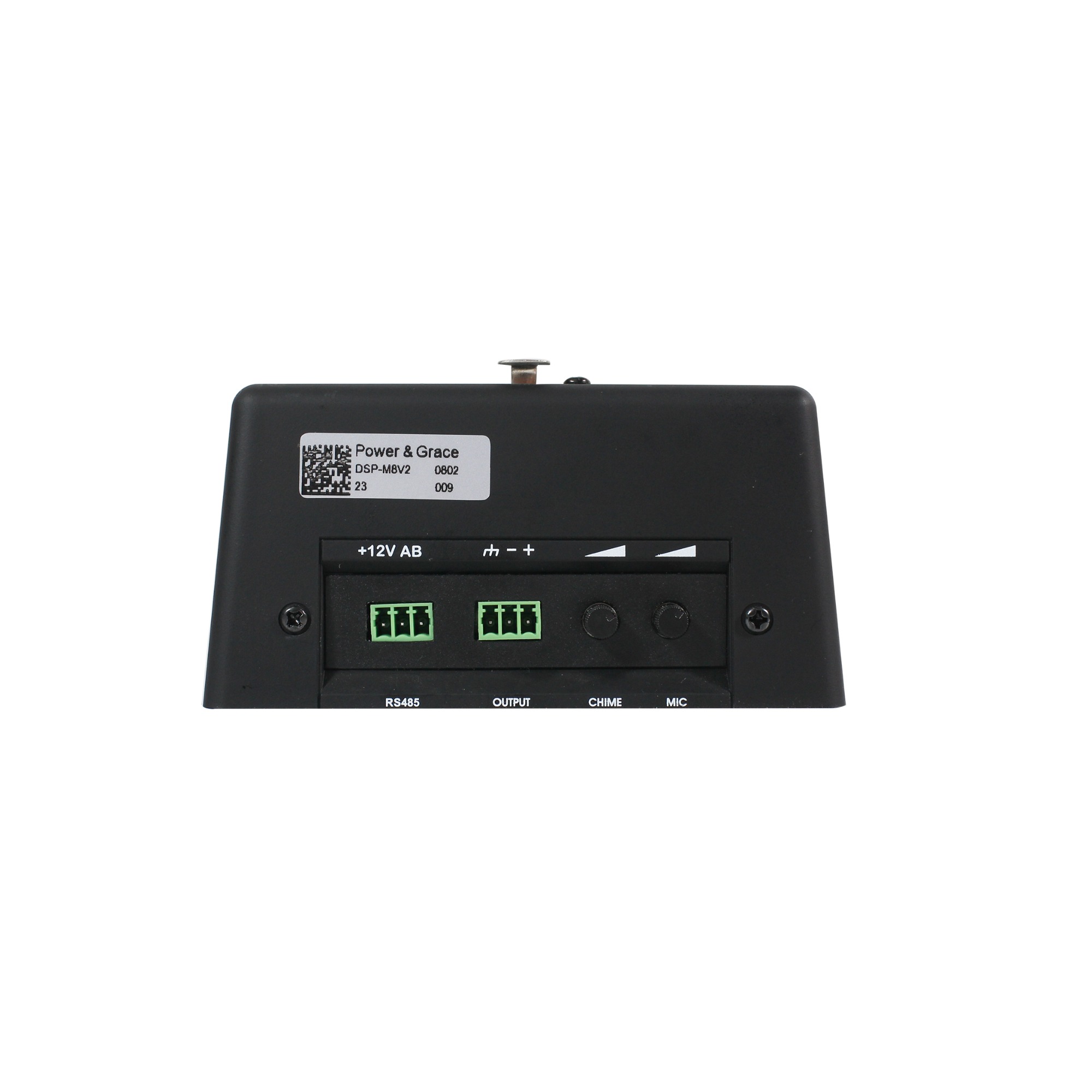

● Connectors

Rs485 communication with DSP-880N2, DSP-880ND2, DSP-880ND3, DC12V input.

● Indicators

Power, Busy, Signal, Clip.

Model	DSP-M8V2
Rated Output Level / Impedance	0dB / 600Ω Balanced
Input sensitivity / Impedance	-36dB / 20kΩ Balanced
Frequency Response (-1dB)	80Hz -15kHz
T.H.D	<0.1%
Hum & Noise	> 90 dB
Number of Zone	8 Zones
Weight (Net)	750g
Dimensions (W x Hx D)	115 x 60 x 195mm (only body)
