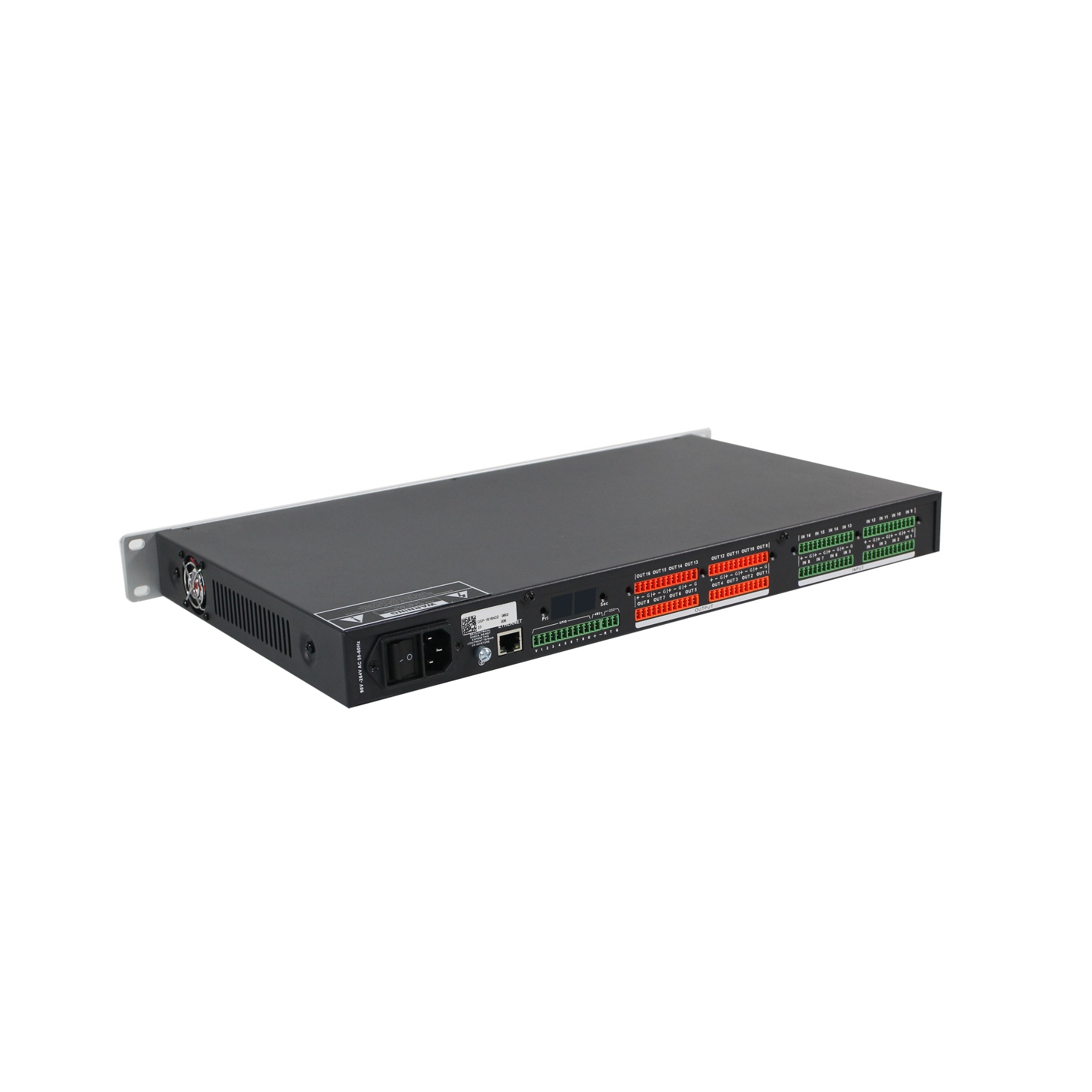

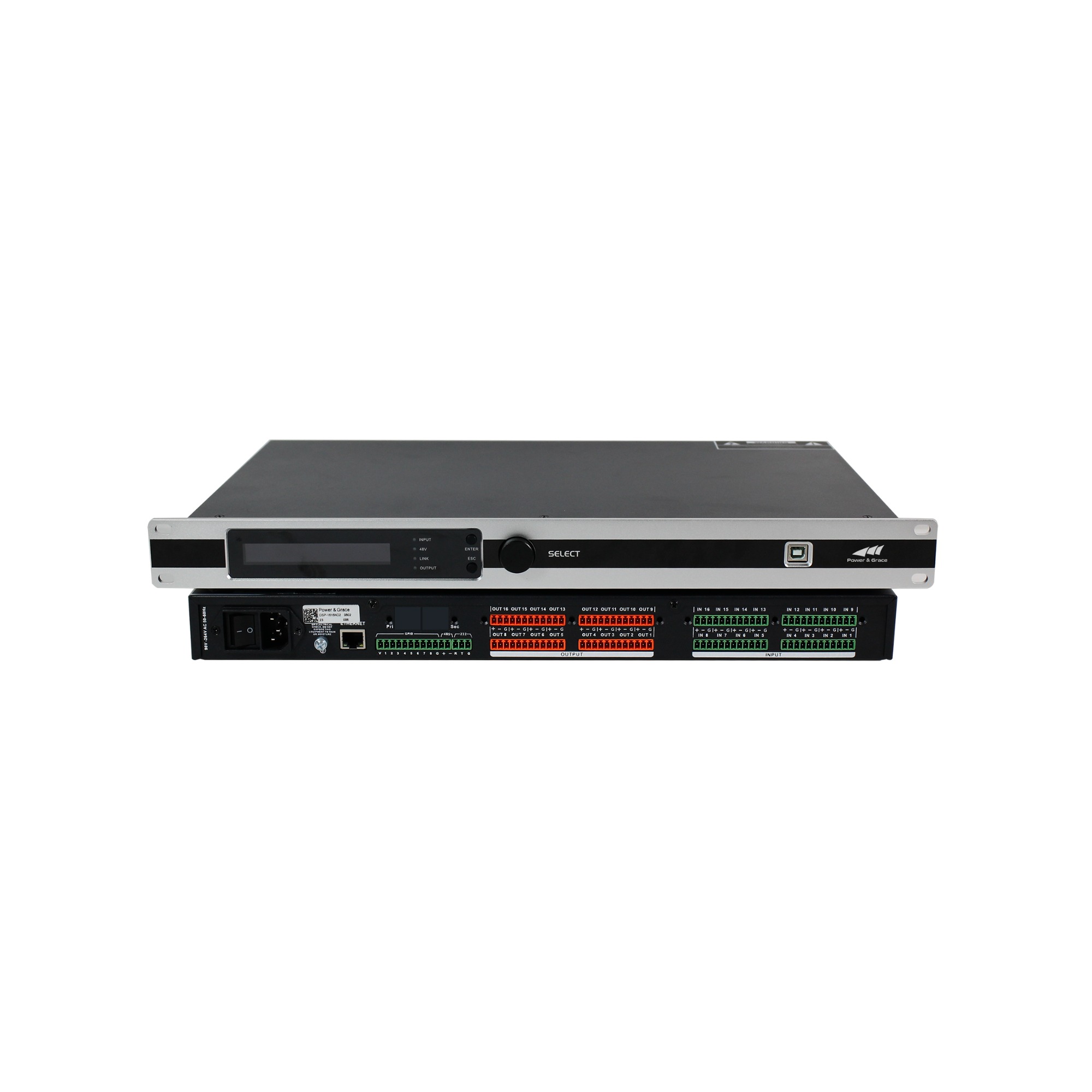

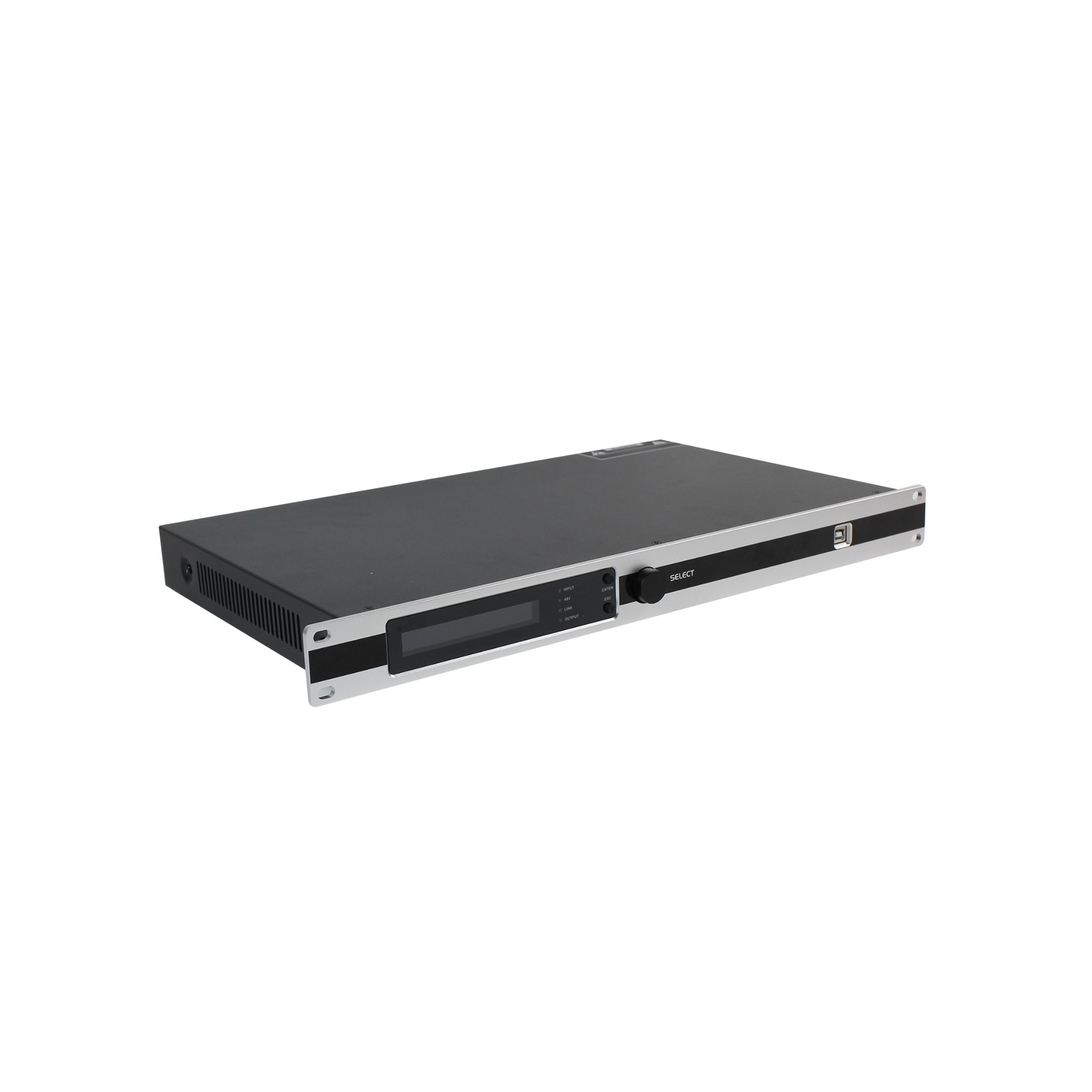

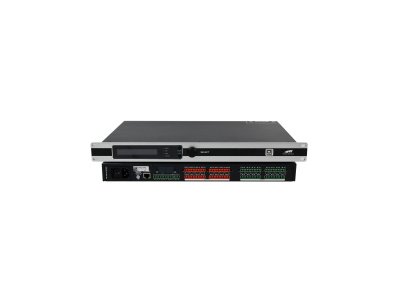

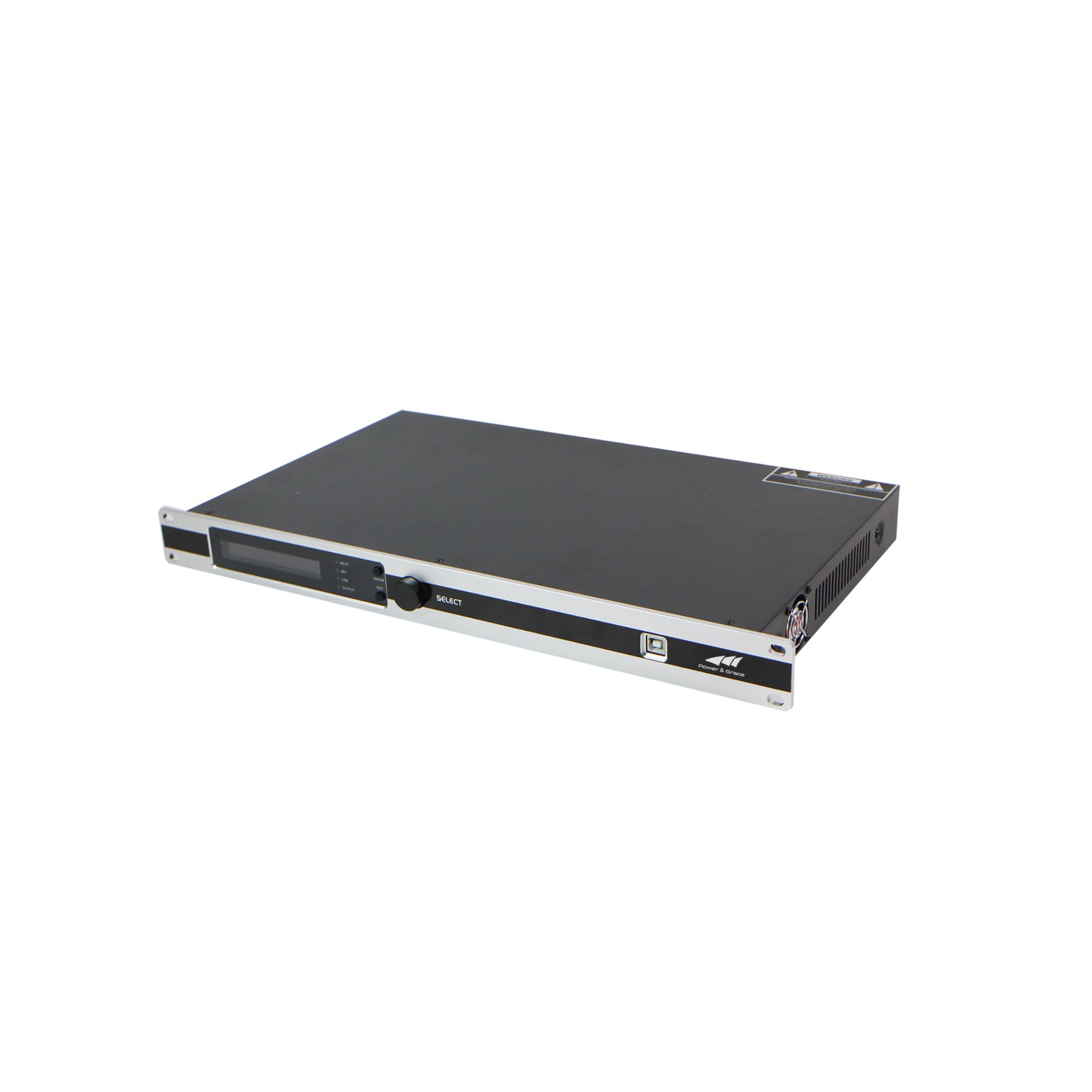

16 In 16 Out DSP Audio Processor
16 In 16 Out DSP Audio Processor
16 In 16 Out DSP Audio Processor
16 In 16 Out DSP Audio Processor
16 In 16 Out DSP Audio Processor

16 In 16 Out DSP Audio Processor

The DSP-1616N2/DSP-1616ND2/DSP-1616ND3 audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose-built DSP processor. At the same time, it has independent FIR/AFC/ AEC/ ANS/ AGC gain sharing automatic mixing, threshold automatic mixing and other processing modules. The /DSP-1616ND2/DSP-1616ND3 includes 16 mic/line analog inputs, 16 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.

  • Model:： DSP-1616N2
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

The DSP-1616N2/DSP-1616ND2/DSP-1616ND3 audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose-built DSP processor. At the same time, it has independent FIR/AFC/ AEC/ ANS/ AGC gain sharing automatic mixing, threshold automatic mixing and other processing modules. The /DSP-1616ND2/DSP-1616ND3 includes 16 mic/line analog inputs, 16 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.


● 16-channel analog input and 16-channel analog output, Microphone or Line in switch

● +48V Phantom power per input channel

● AFC in each input

● AUTO-MIX and MATRIX-MIX

● 15 PEQS per input and 10 PEQS per output

● USB free driver connect, RS232/485 connector for center control


Ordering Code:

DSP-1616N2: 16 In 16 out DSP audio processor AFC,AEC, ANC,AUTOMIX, RS 232 and camera control

DSP-1616ND2: 16 In 16 out DSP audio processor AFC,AEC, ANC,AUTOMIX, RS 232 and camera control Dante Ultimo 4 Channel

DSP-1616ND3: 16 In 16 out DSP audio processor AFC,AEC, ANC,AUTOMIX, RS 232 and camera control Dante 16 Channel


ModelDSP-1616N2
Input Channels16 balanced. Mic/line level
Connectors3.81 mm Euro block
Input Impedance11.5KΩ
Maximum Input Level14dBu/Line, -7dBu/Mic
Phantom Power+48VDC, 10mA, selectable per input
Output Channels16 balanced, line level
Output Impedance150Ω
Frequency Response20Hz-20kHz(+-0.5dB)/Line
20Hz-20kHz(+-1.5dB)/Mic
THD+NLINE: 0.003%
MIC: 0.005%
SNR105dB(@12dBu,1kHz,A-wt)/Line
95dB(@-7dBu,1kHz,A-wt)/Mic
USBMicro-B type, free driver
RS232Serial port communication
TCPIPRJ-45, Optional
LED Status IndicatorsPower, Link, +48V, Input and Output Audio signal
Mains VoltageAC100V---240V 50/60 Hz
Dimensions44mmx483mmx210mm
Net Weight2.8kg
Operating Temperature-20℃-60℃
Cooling SystemActive, Fan inside
Signal Processor32-bit fixed/floating-point DSP 300MHz
Audio Latency< 1ms
A/D and D/A Converters24-bit
Sample Rate48KHz


MetInfo enterprise content manager system | MetInfo CMSDSP-1616N2,DSP-1616ND2,DSP-1616ND3.pdf
