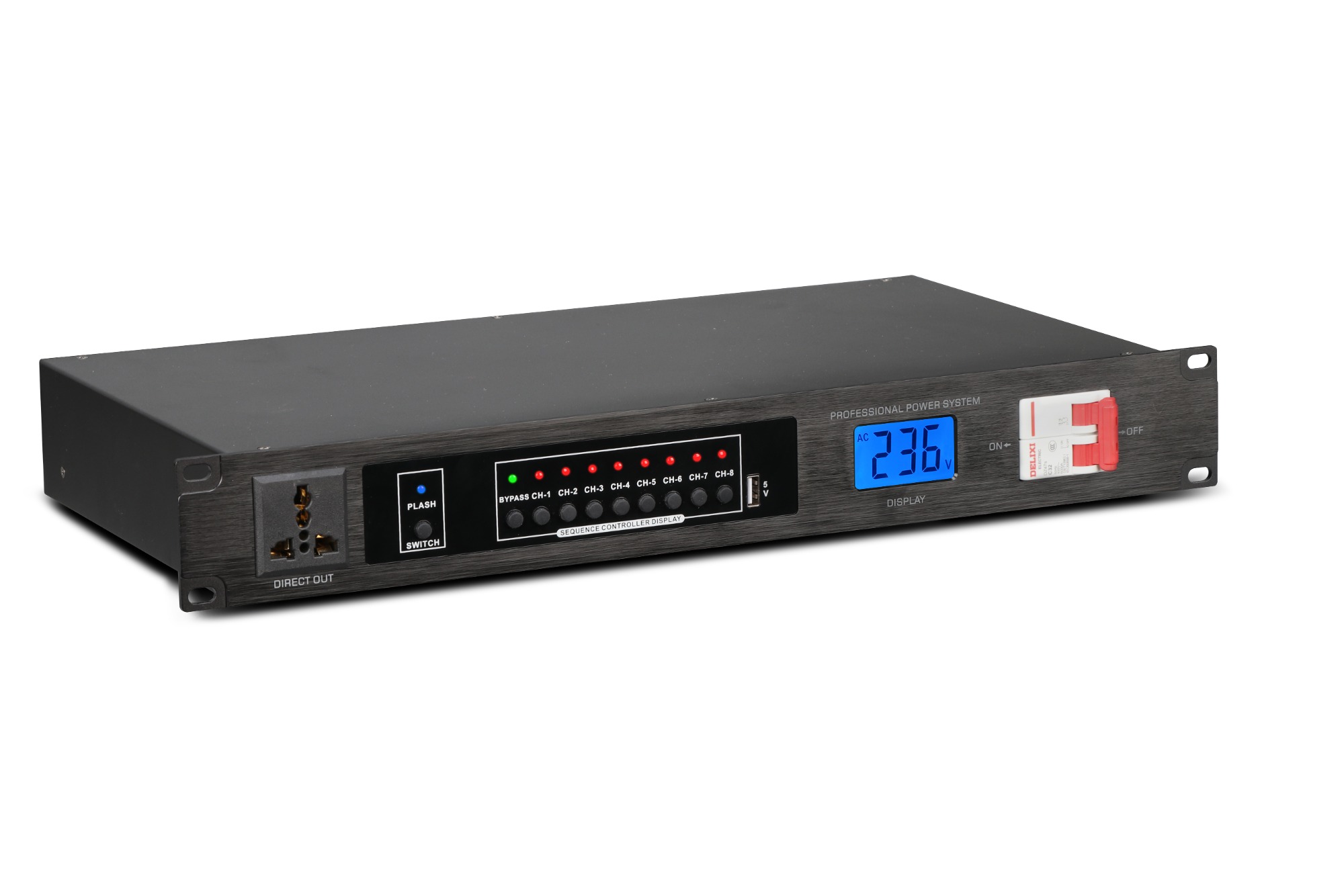

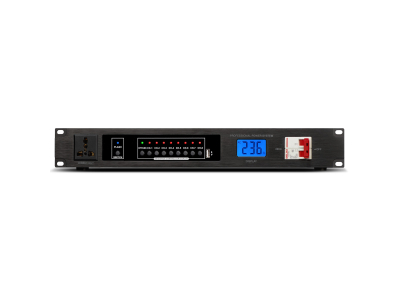

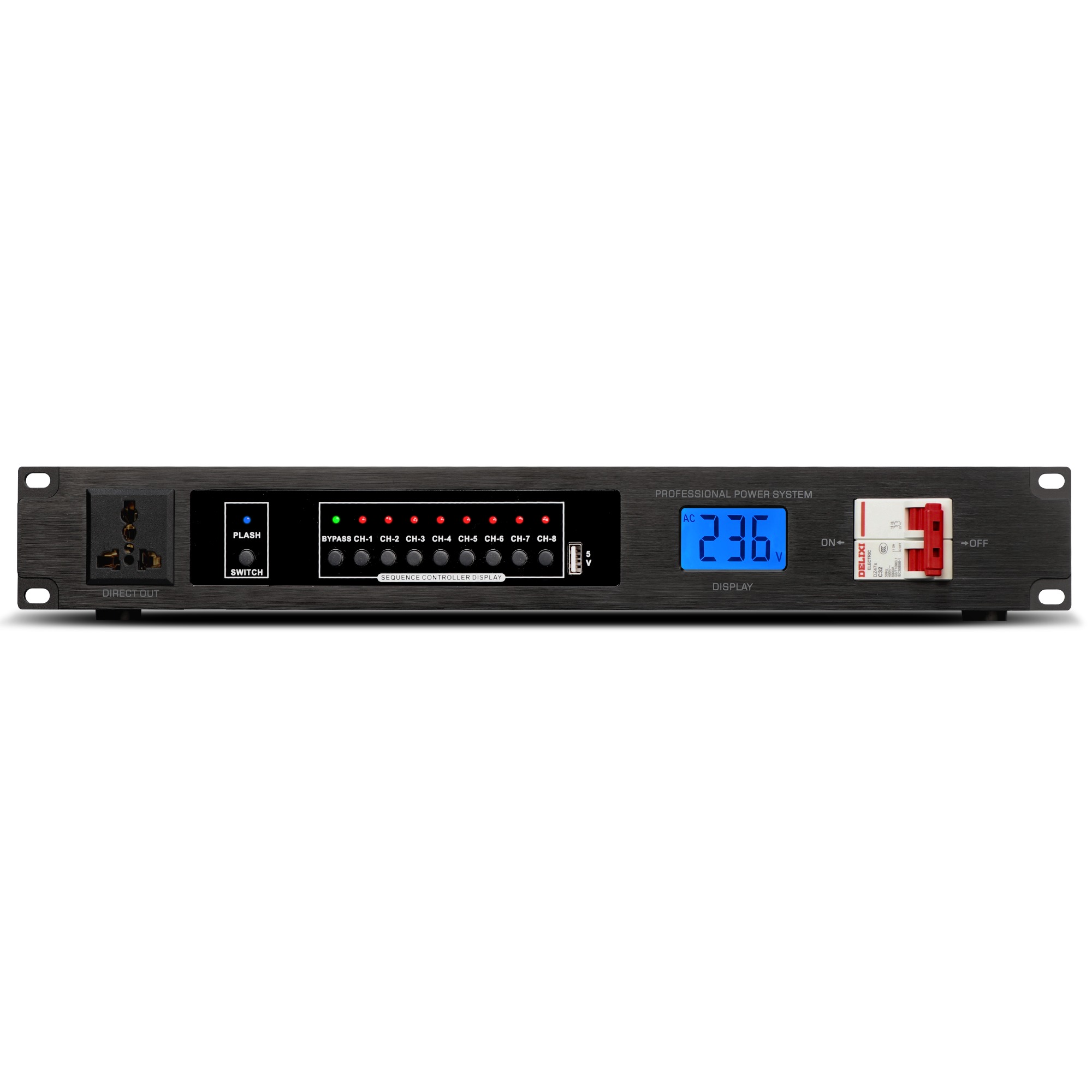

8-channel Programmable Power Sequencer
8-channel Programmable Power Sequencer
8-channel Programmable Power Sequencer

8-channel Programmable Power Sequencer

​ST-801 is 8-channel wide range power sequence of integrated central control, mainly for audio sequence of complex power equipment. It is ideal for public broadcasting, outdoor performances, school lecture room, multimedia conference hall, multi-function hall, training center, villas, hotels, or intelligent home furnishing etc.

  • Model:： ST-801
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

ST-801 is 8-channel wide range power sequence of integrated central control, mainly for audio sequence of complex power equipment. It is ideal for public broadcasting, outdoor performances, school lecture room, multimedia conference hall, multi-function hall, training center, villas, hotels, or intelligent home furnishing etc.



Features:

l  Sequencing for ON, Invert-sequencing for OFF.

l  PASS button to turn on all channels simultaneously.

l  Adjustable time interval

l  Selectable channel close

l  ID:0-255 stack machine

l  External control

l  Voltage indicator

l  Electric leakage protection & overcurrent protection

l  Independent close of panel channel

l  Single channel independent switch: configurable on panel control (ST-801 also supports software control)

l  Short circuit, Overcurrent protection (circuit breaker configuration) is based on null and live line, circuit breaker starts the electric leakage protection in 30MA/T<=0.1s, and overcurrent protection at 40A.


Model

ST-801

Panel color

Black

Power requirement (single phase 3-wire)

AC200-240V, 50-60Hz two phase (null line, live line, ground wire)

Channel number

8-way socket relay in straight-through connection with 1-way socket

Max. withstanding output reactive power of single

2000W/6000W

Channel or overall channel (Relay in control) output power socket

of universal standard that ABS material of inflaming retarding, phosphor copper material that can withstand the maximum current of 13A.

Circuit board

Fiberboard on both sides, the main power line of bold thickening

Output relay contact current

30A 277VAC

Power supply

Built-in switching power supply; voltage AC200-260V, 50-60Hz

Open type

Push-button tact switch

External switching control interface

RS232 COM interface

Voltage indicator

LCD Voltmeter

cascade function

Yes

Control method & the number of ID allocation

command code & control software for central control, ID:0-255

Power source filter (EMI power grid filter)

N/A

Product dimensions (LxWxH)

480x245x64mm

Single unit packaging size (LxWxH)

550x360x98mm

Package

5 units per carton

Gross weight (carton)

23kg

Carton dimensions (LxWxH)

562x 375x513mm
