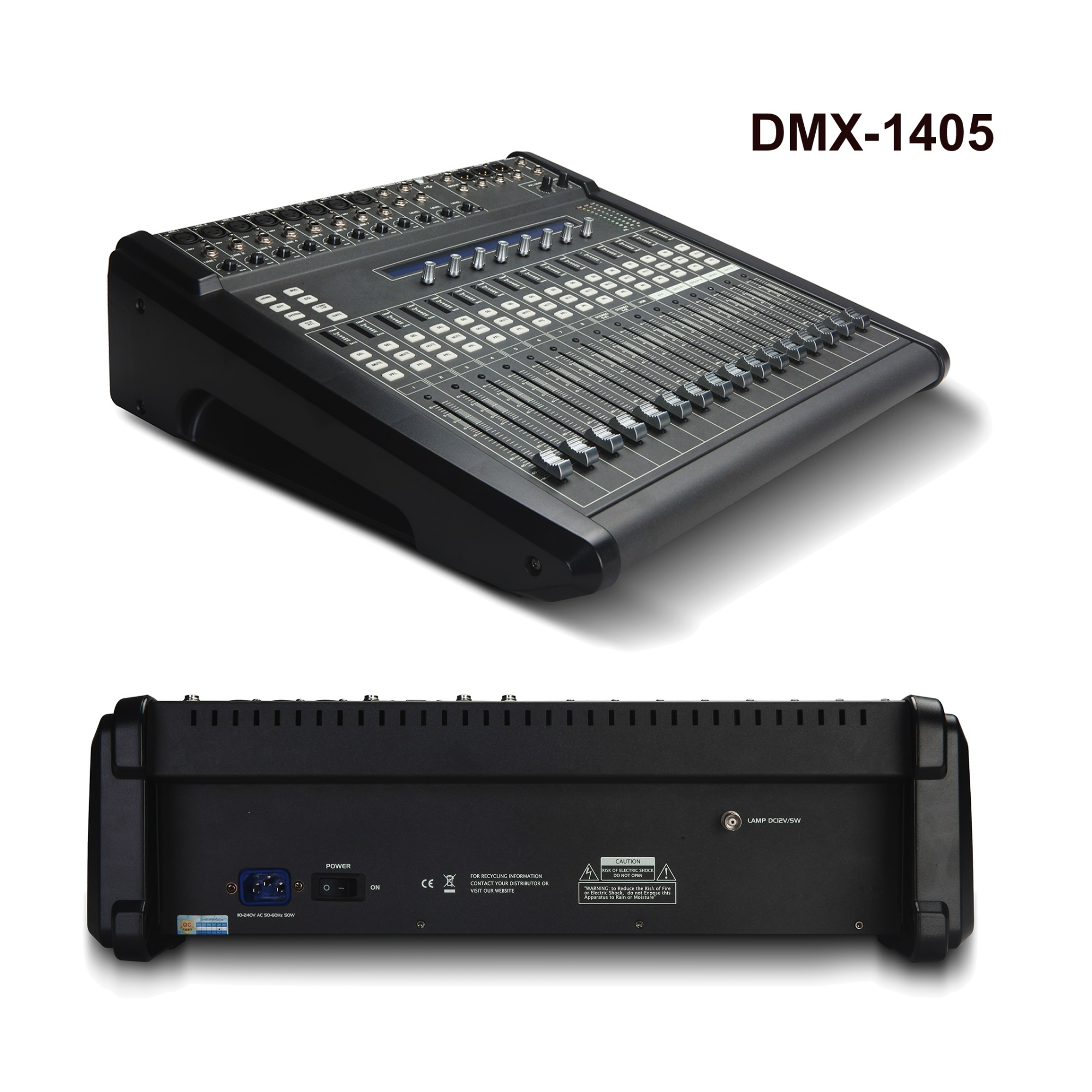

DMX-1405P has built-in 2×1500W 4Ω/2×900W 8Ωhigh-power digital power amplifier.
Built-in 2×1500W 4Ω/2×900W 8Ωhigh-power digital power amplifier;
14 channel TOTAL RECALL digital mixer, equipped with high-end microphone amplifier and 5 mixing buses, and sub-groups can be set;
Each input channel has a 5ms delay, high-pass filter, high and low filters, 7-segment parametric equalizers, compressor with sidechain function, noise gate;
Each output channel has a 5ms delay, high and low filters, 7-segment parametric equalizers, limiters, noise gate;
Built-in effector, external effector can be inserted;
Built-in USB sound card, drive free, supporting MAC, Windows, IOS, and can play music and record after inserting USB sound card;
2 group outputs, 1 effect echo input;
Support total recall preset storage and recall function, allowing offline saving/recall of 9 scenes;
High-end microphone amplifier, 48V phantom power;
Each channel has a complete dynamic, EQ and level meter;
16 low-noise 100mm electric thrusters;
5 analog XLR outputs, 2 monitoring headphone interfaces;
Support scene management function, which can save 9 kinds of scenes, making it easy to manage complex scenes;
Both input and output have adjustable linear delay;
Scene management system suitable for live performance.
Model | DMX-1405P |
Input | |
THD+N | ＜0.006% A-weighted |
CMRR, XLR @20dB Gain (Typical) | ＞70dB |
CMRR, XLR @40dB Gain | ＞80dB |
Equivalent Input Noise (Input Short Circuit) | -110dBu |
Input Compensating Resistance XLR, Unbalanced/Balanced | 5kΩ/10kΩ |
Output | |
Frequency Range | 10-20kHz |
Sampling Rate@48kHz | 0dB~-1dB |
Dynamic Range Analog In Analog Out (Typical) | 106dB |
A/D Dynamic Range, pre-putted to the Converter (Typical) | 109dB |
D/A Dynamic Range, Converter to output | 108dB |
Channel Crosstalk@1kHz | 100dB |
Output Level, XLR, NOM/MAX | +4dBu/+21dBu |
Output Compensating Resistance XLR, Unbalanced/Balanced | 75Ω/75Ω |
