14-Channel Digital Mixing Console with 14 Mic/Line Inputs, 12 Analog Outputs

14 channel TOTAL RECALL digital mixer, equipped with high-end microphone amplifier and 12 mixing buses, and sub-groups can be set;
Each input channel has a 5ms delay, high-pass filter, high and low filters, 7-segment parametric equalizers, compressor with sidechain function, noise gate;
Each output channel has a 5ms delay, high and low filters, 7-segment parametric equalizers, limiters, noise gate;
Built-in effector, external effector can be inserted;
Built-in USB sound card, drive free, supports MAC, Windows, IOS, and can play music and record after inserting USB sound card;
4 group outputs, 4 auxiliary outputs, 1 effect echo input;
Support total recall preset storage and recall function, allowing offline saving/recall of 9 scenes;
High-end microphone amplifier, 48V phantom power;
Each channel has a complete dynamic, EQ and level meter;
16 low-noise 100mm electric thrusters (including 8 page-turnings);
11 analog XLR outputs, 2 monitoring headphone interfaces;
Support scene management function, which can save 9 kinds of scenes, making it easy to manage complex scenes;
Both input and output have adjustable linear delay;
Scene management system suitable for live performance.

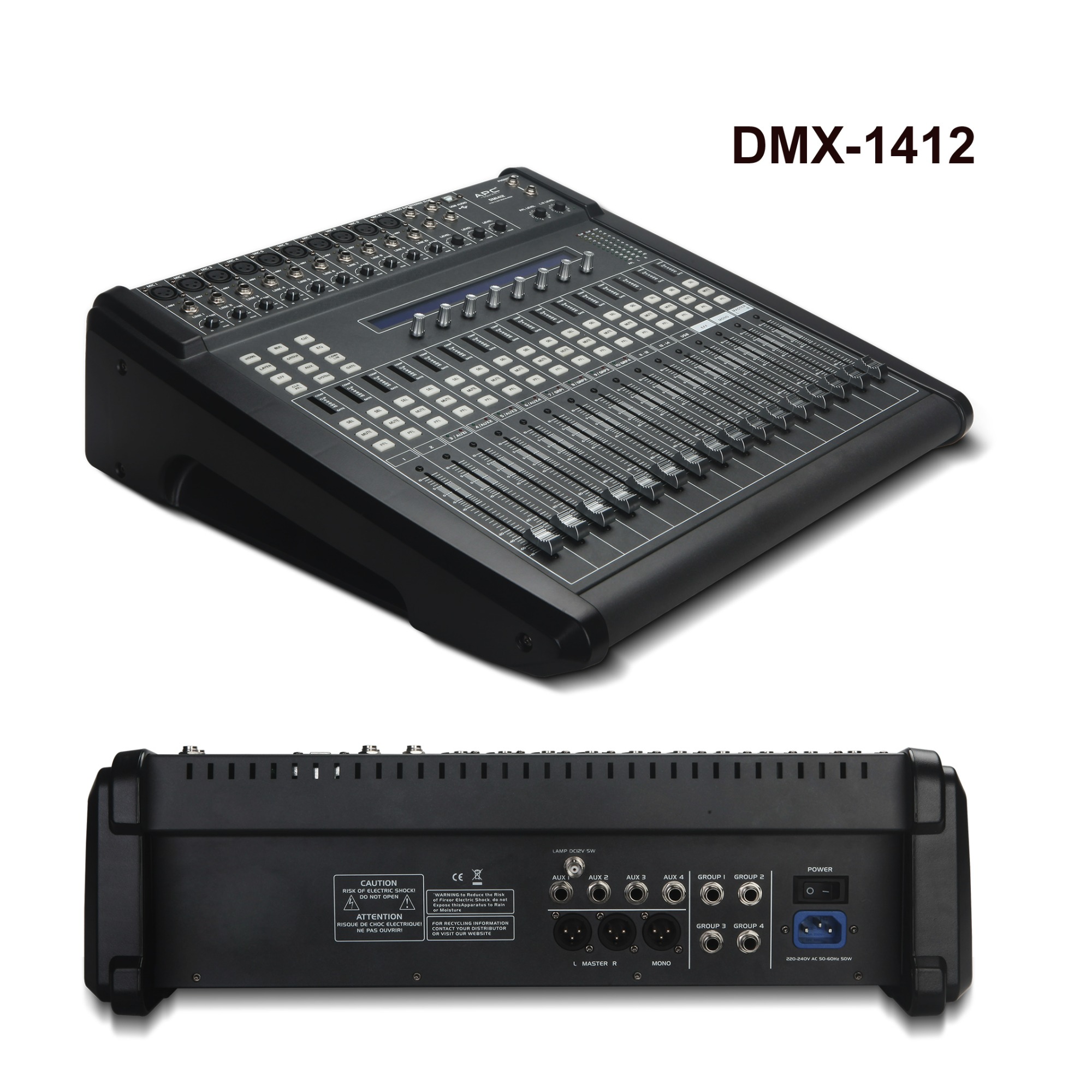

Model	DMX-1412
Input
THD+N	＜0.006% A-weighted
CMRR, XLR @20dB Gain (Typical)	＞70dB
CMRR, XLR @40dB Gain	＞80dB
Equivalent Input Noise (Input Short Circuit)	-110dBu
Input Compensating Resistance XLR, Unbalanced/Balanced	5kΩ/10kΩ
Output
Frequency Range	10-20kHz
Sampling Rate@48kHz	0dB~-1dB
Dynamic Range Analog In Analog Out (Typical)	106dB
A/D Dynamic Range, pre-putted to the Converter (Typical)	109dB
D/A Dynamic Range, Converter to output	108dB
Channel Crosstalk@1kHz	100dB
Output Level, XLR, NOM/MAX	+4dBu/+21dBu
Output Compensating Resistance XLR, Unbalanced/Balanced	75Ω/75Ω
