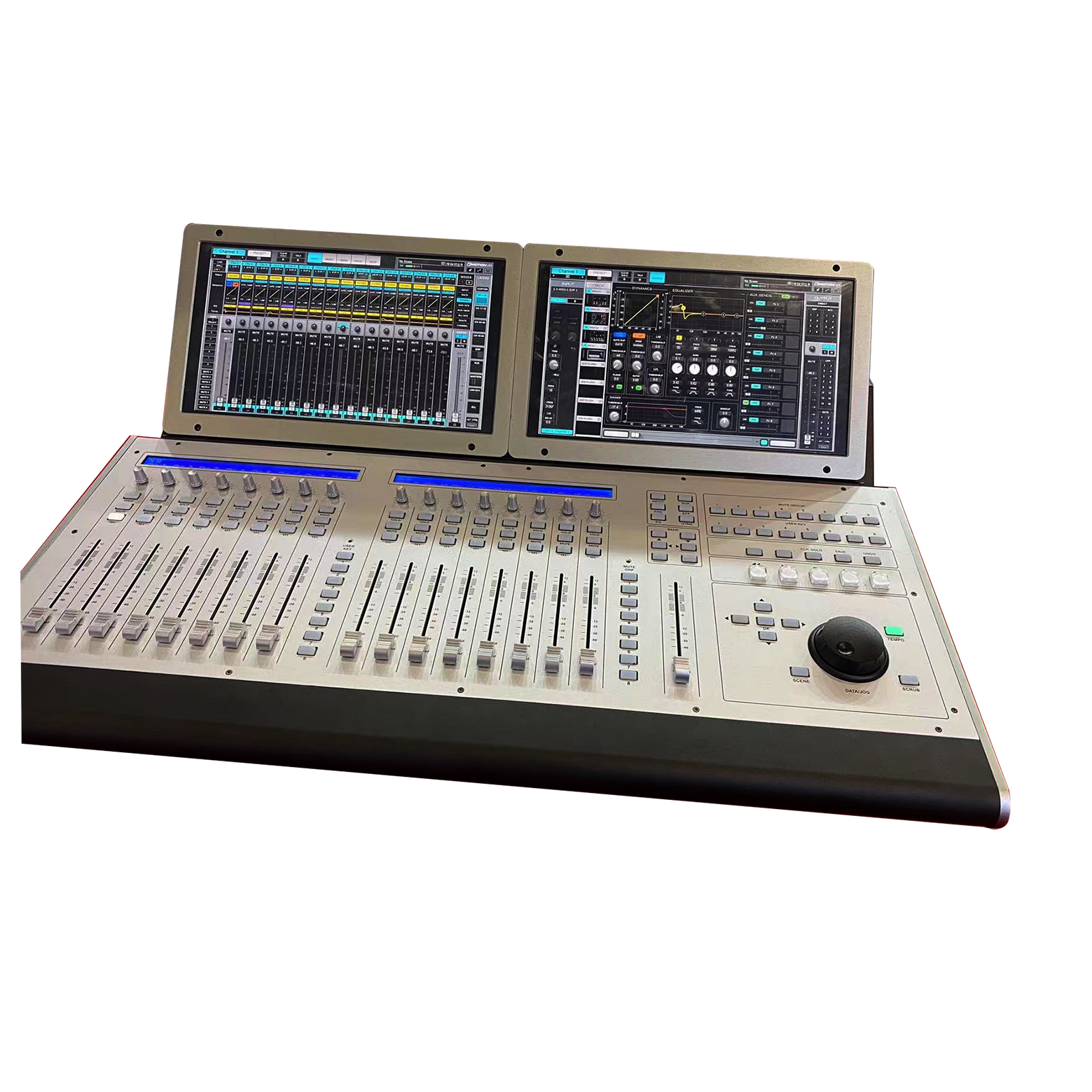

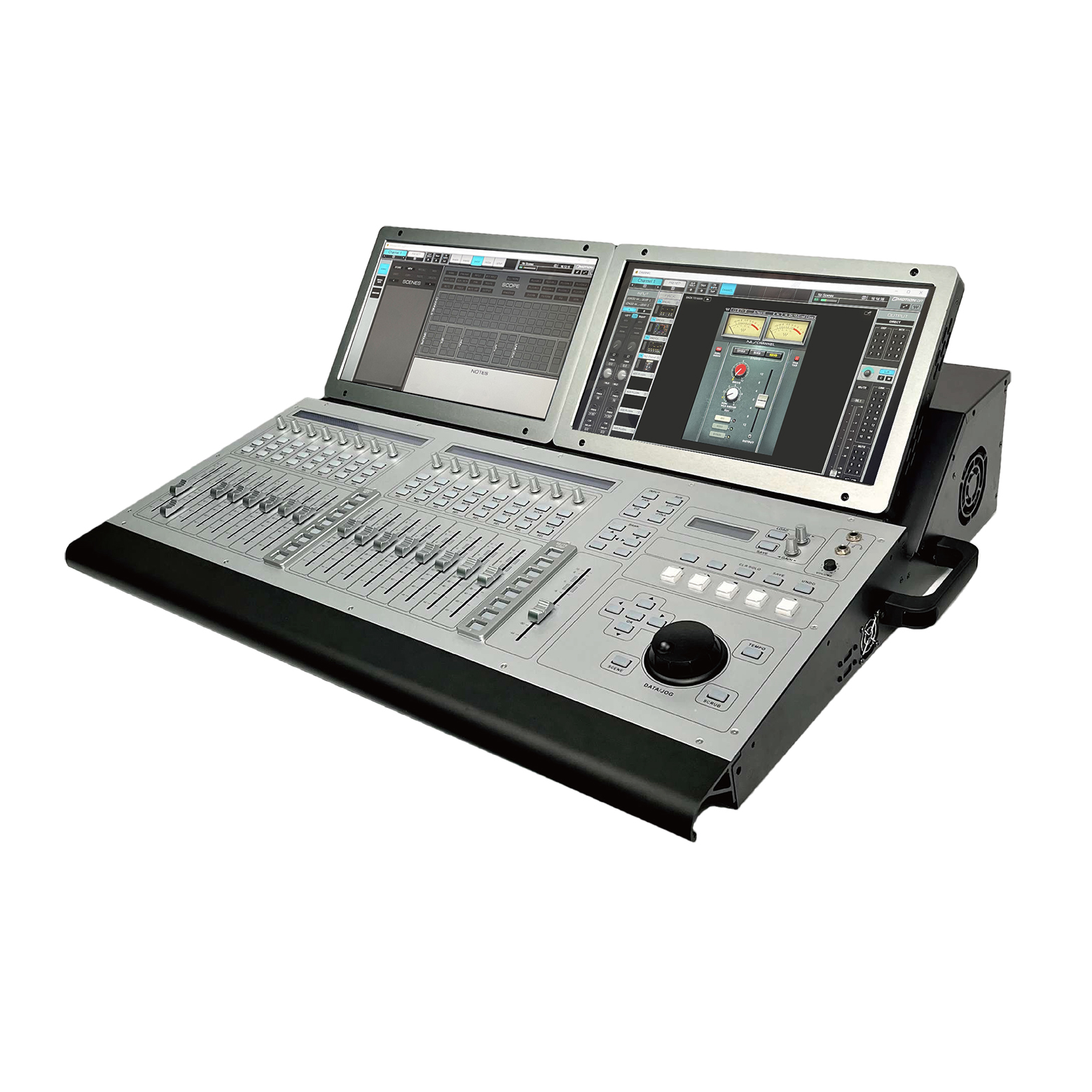

Dante 120-channel Digital Mixing Console

Simultaneous control of audio, video and light, GrandVJ video mixer, LightJockeylight controller;

120 channel inputs, 120 channel outputs, equipped with 5-segment stereoequalization, low cut and high cut fifilters, threshold and compressor with band-passfifilters;

MADI transmission, 6 stereo auxiliary transmissions with audio and videobefore/after effffect connection, 24 stereo output distribution 8-point full surround XY audio and video plus a central channel and sub transmitter;

Each channel has a fader and a - 60dB high-defifinition stereo level meter, and anyinput channel can be allocated to any or all output channels at the same time;

The 8 main output channels can be routed to any hardware output device, while theother 16 output channels can be used as the pushers of the sub group and VCA, andreturned to any 8 main pushers;

The inputs of the main amplififier and mixer are internally separated to 24 monitoringconsoles, makes it possible to monitor 72 channels of stereo mixing, each of whichhas an overlay equalizer, a dynamic processor, and 6 channels of auxiliary sendingand returning;

Each monitoring console has 8 main stereo output channels, so 16 channels canbe used as sub groups;

25 mixers layers, supporting up to 28 workstations for 28 users;

Physical dual engine-virtual mixing engine with 64 bit fifixed-point computingtechnology, Direct and VST protocols seamlessly, seaming hot backup;

TCP/IP remote network. The system can be controlled by remote notebook through Ethernet cables and hubs or switches, or wireless system.

Support mainstream audio production software;

Compatible with WAVES software.
