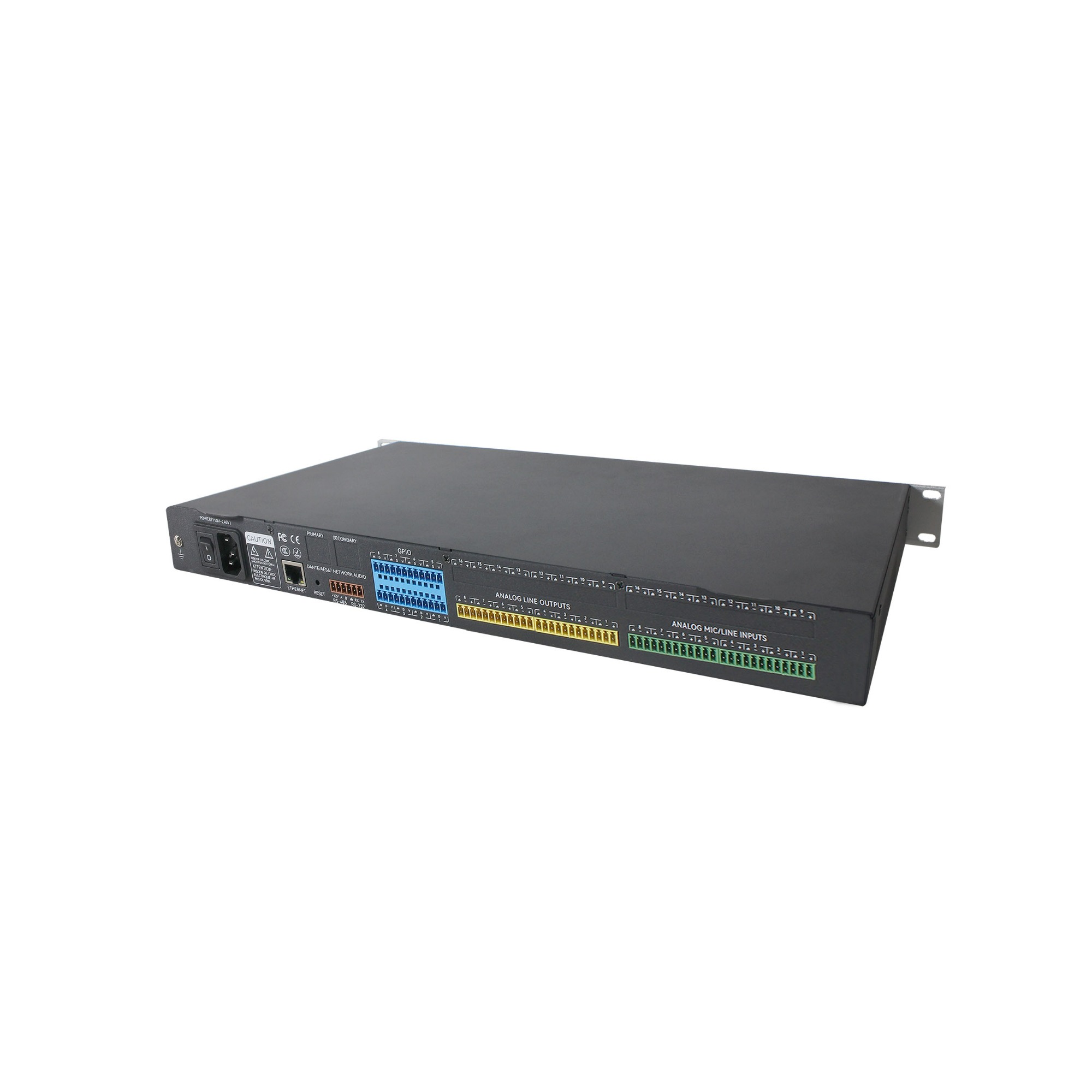

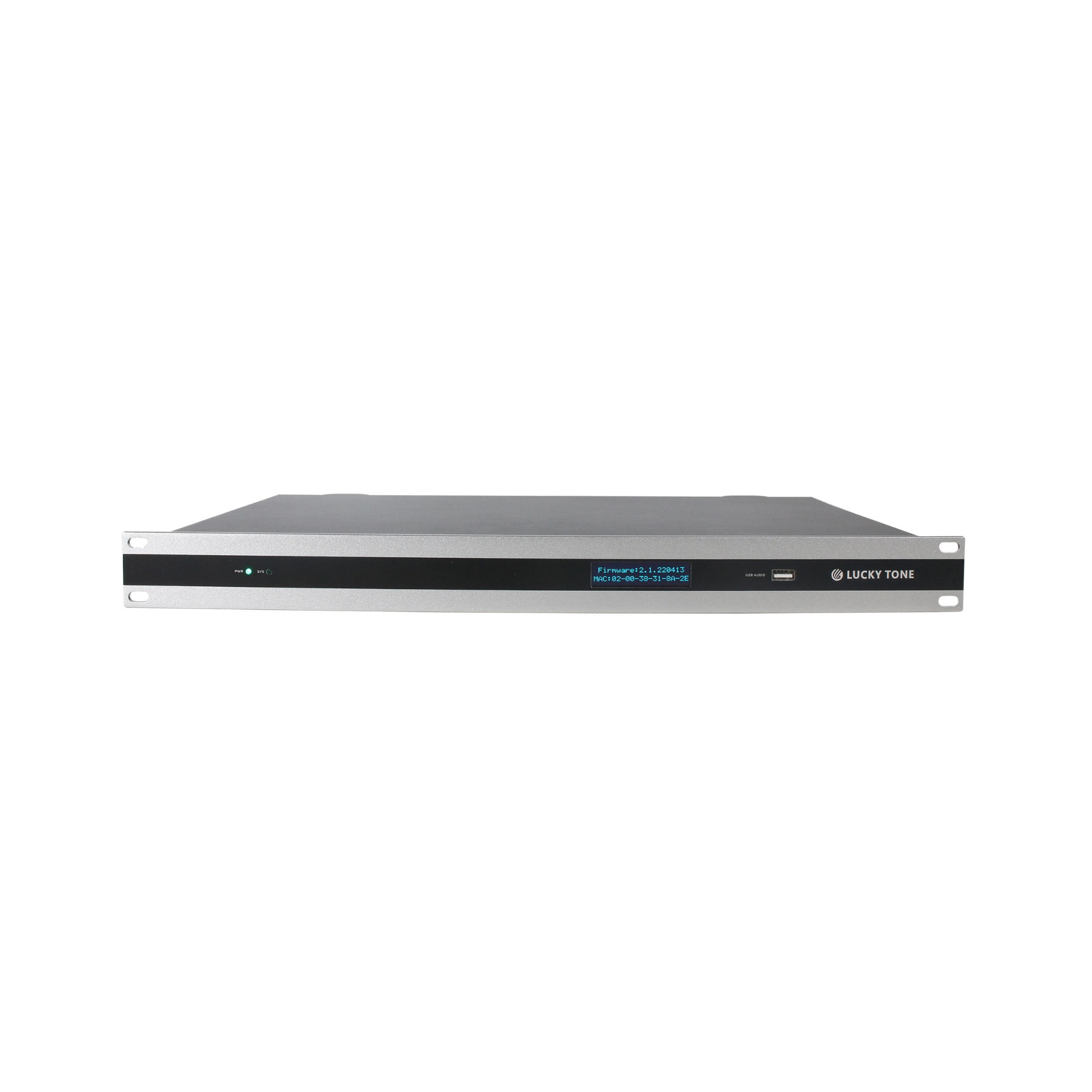

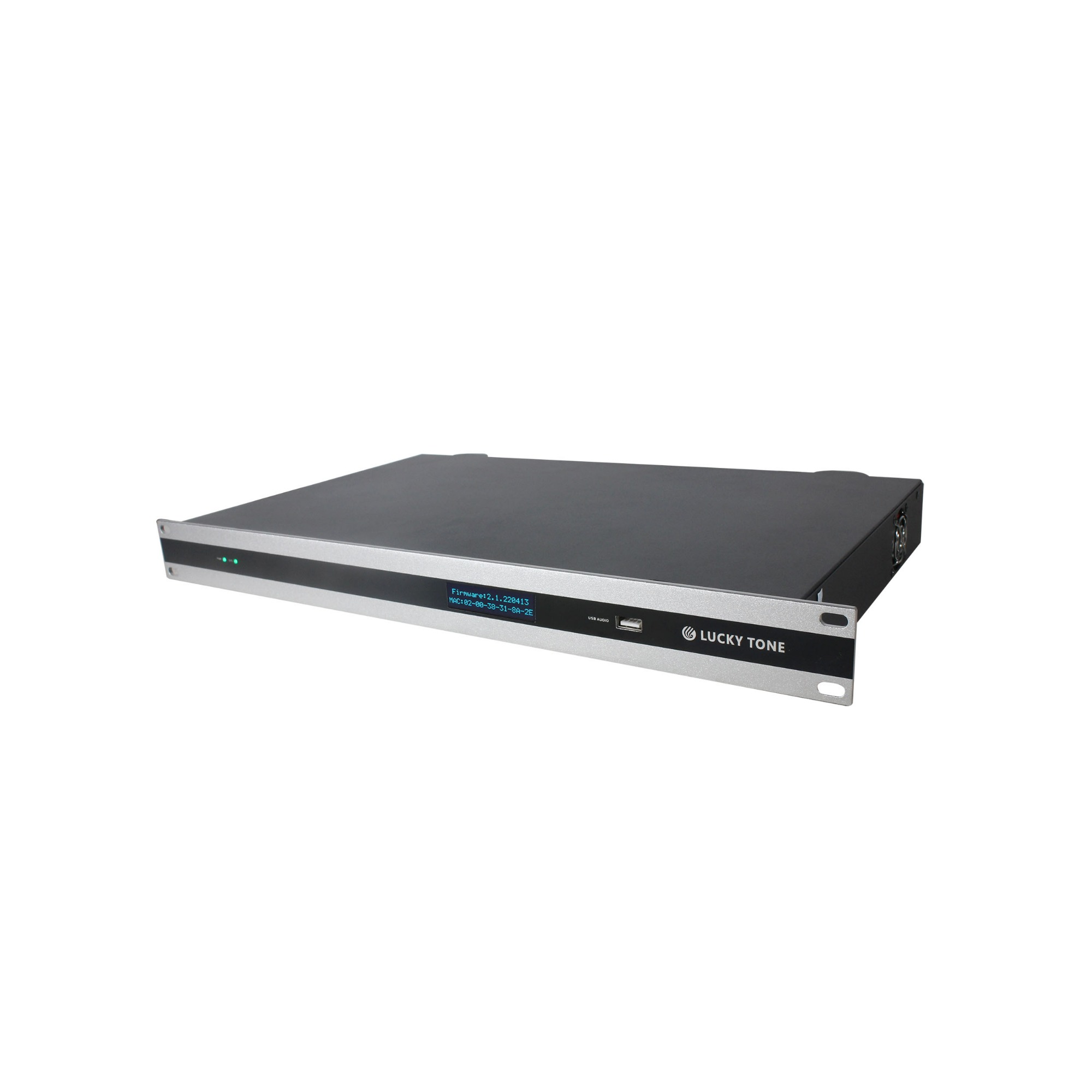

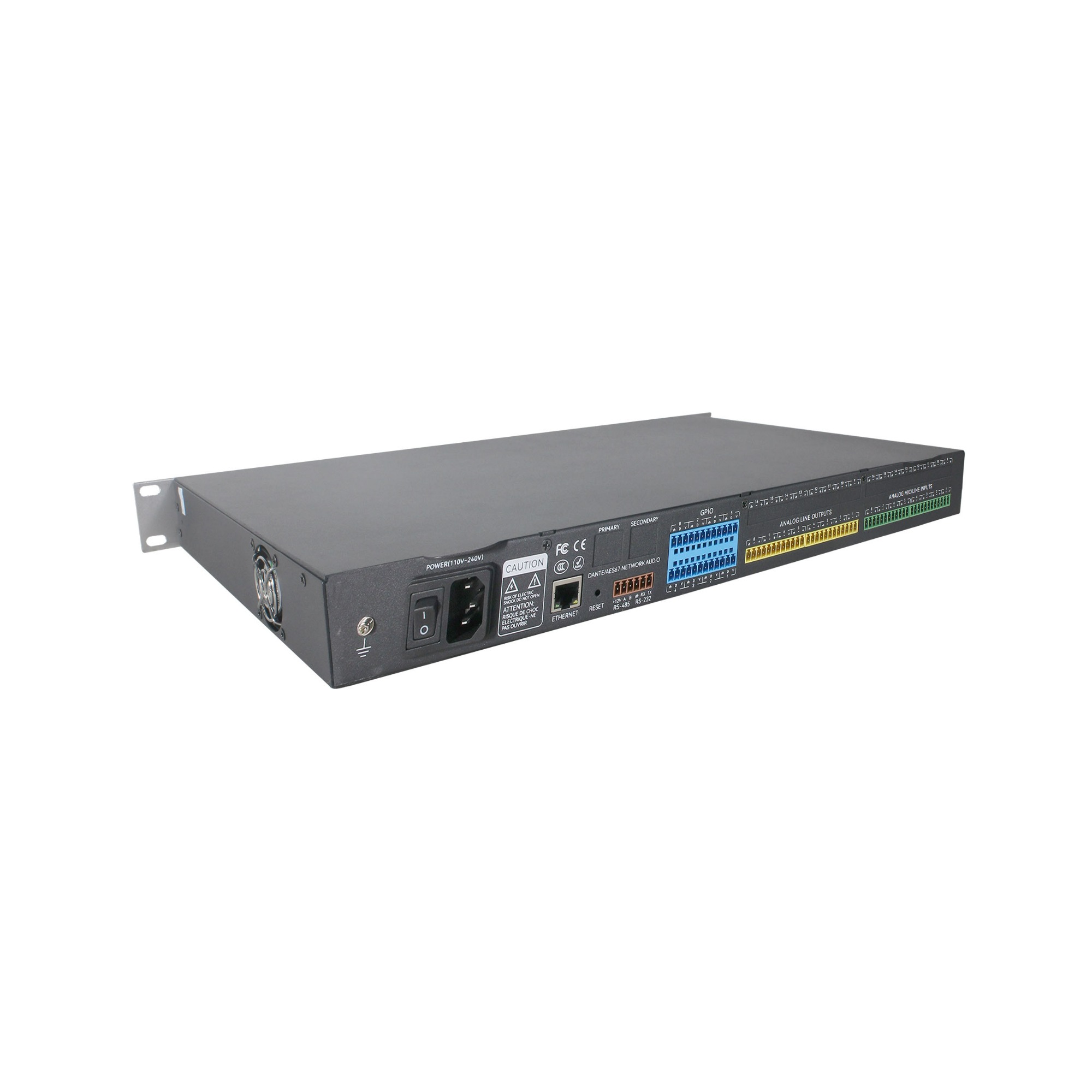

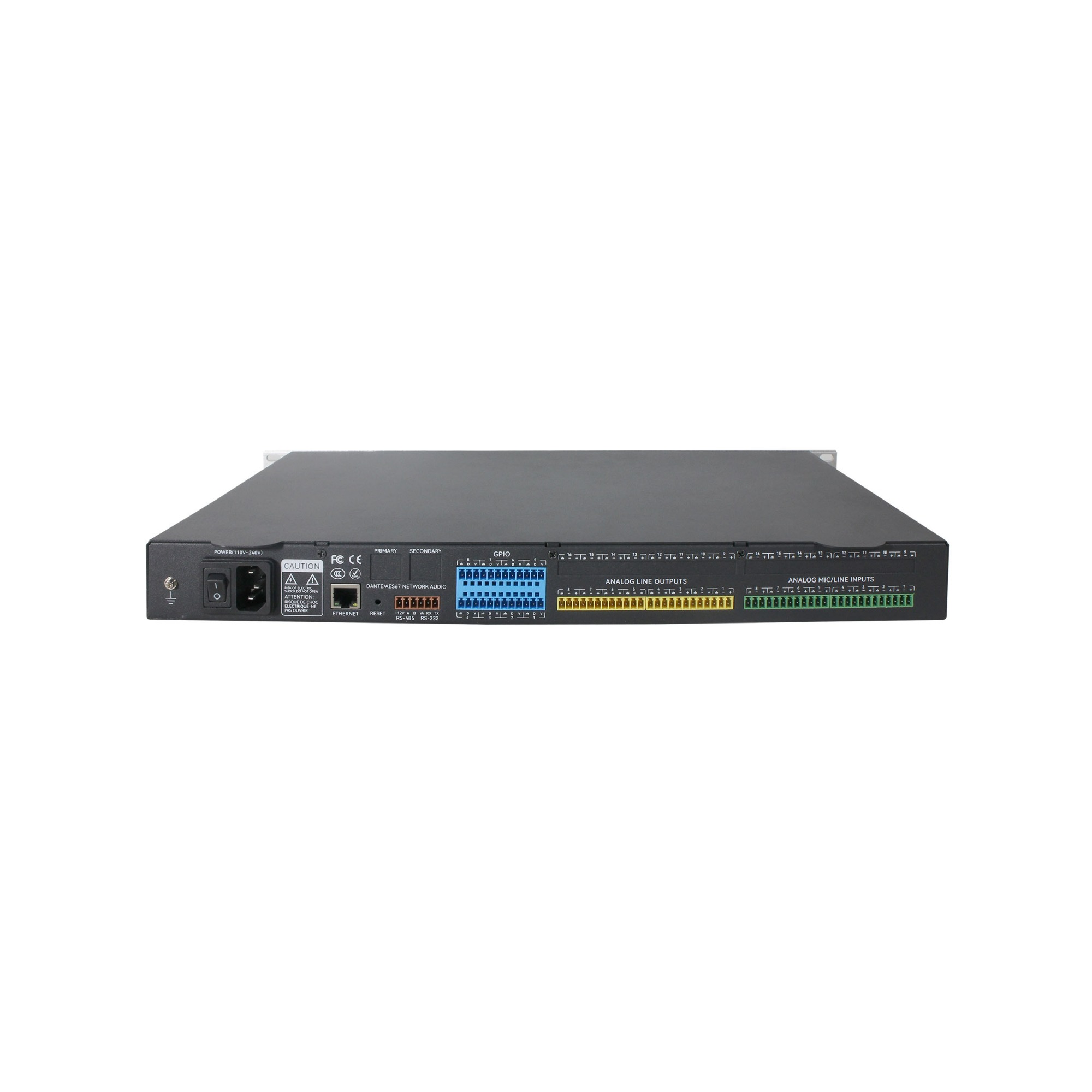

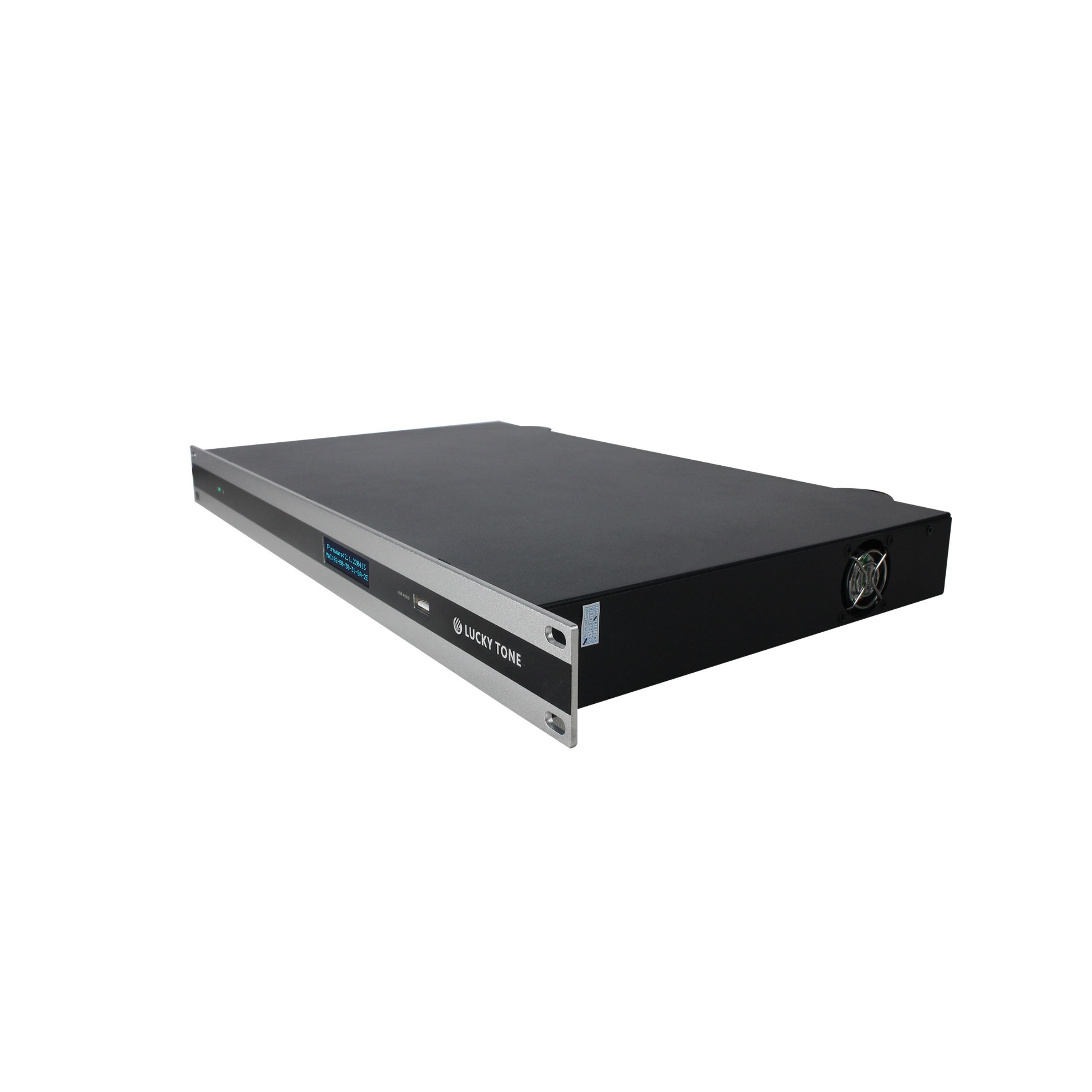

64 In 64 out DSP Dante Audio Processor

With industry-leading chip ADI SHARC 21489 , theworking frequency can reach 450M Hz;
Provides operation interface for customers to realizecentralized control of multiple devices.
UDP, RS232, RS485 can control third-party’sequipment,with full-featured matrix mixing, the inputmixing level can be adjusted;
There are 16 presets, each preset worksindependently;
8 GPIOs can independently confifigure with input oroutput, and they can be used as independent ADCwhen confifiguring with input and it supports channelcopy, LINK and group functions;
Support RS232&UDP central control, UDP port canbe set freely, and you can check the controlsoftware code;
2 types of wall panels are optional, and they areavailable to software programming.

Dante audio channel	Dante Ultimo
Input	8 section PEQ , Expander, Compressor
Output	Frequency divider, 8 segment PEQ, Delayer, Limiter
Input gain	0/10/20/30/40/43 dB
THD+N	0.003% @4dBu
Frequency response	20~20kHz ±0.2dB
Maximum level	+24dBu
Phantom power	+48V
Dynamic range (analog channel)	113dB
Dynamic range (Dante channel)	115dB
Self-Noise (A-Weighting-analog )	-89dBu
Self-Noise (A-Weighting-Dante )	-91dBu
Common mode rejection ratio @60Hz	80dB
Channel isolation @1kHz	108dB
Input impedance (balanced connection)	9.4KΩ
Output impedance (balanced connection)	102Ω
System delay	<6ms
Power supply	AC110~240V,50Hz/60Hz
Dimension	482 x 260 x 45mm
Weight	3kg

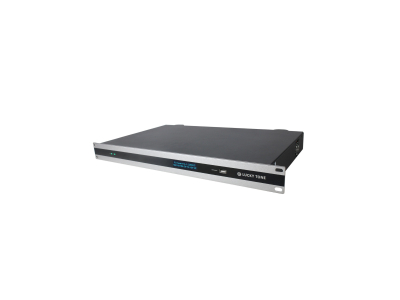

label: 64 In 64 out DSP Dante Audio Processor
