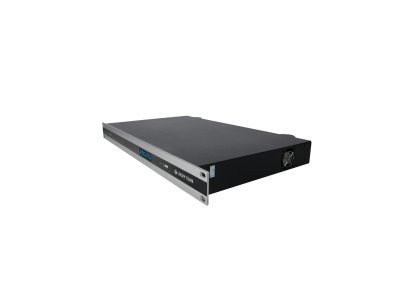

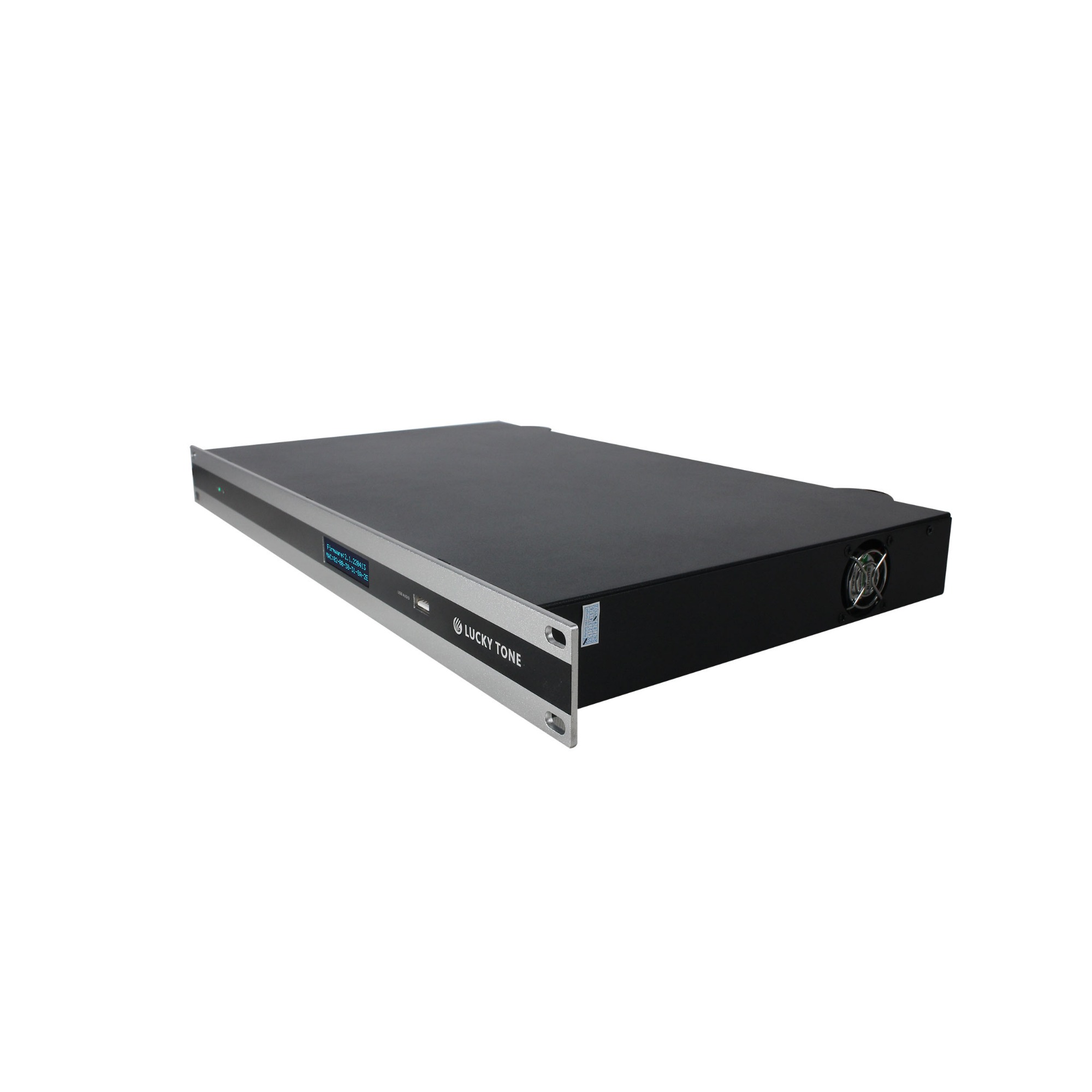

8 In 8 out DSP Dante Audio Processor

With industry-leading chip ADI SHARC 21489 , the workingfrequency can reach 450M Hz;
Customizing operation software makes the confifigurationmore flflexible, and it can control Different DSP;
Provides operation interface for customers to realizecentralized control of multiple devices. And it can controlthird-party’s equipment through DUP RS232, RS485;
AFC (feedback suppression), AEC (echo cancellation), ANS(noise suppression), ANC (noise gain compensation), AGC(automatic gain), gain sharing, threshold automatic mixing,dodger and other processing modules;
Each channel has independent adaptive feedbacksuppression, automatically fifind the feedback point, andautomatically suppress;
Full-featured matrix mixing, the input mixing level can beadjusted;
There are 16 presets, each preset works independently;
8 GPIOs can independently confifigure with input or output,and they can be used as independent ADC whenconfifiguring with input;
Support channel copy, LINK and group functions;
Support RS232&UDP central control, UDP port can be setfreely, and you can check the control software code;
2 types of wall panels are optional, and they are availableto software programming.

Input Channels(analog)	8
Output Channels(analog)	8
Dante audio channel	Dante Ultimo
Input	5/ 8/ 12 section PEQ (optional), AFC/AEC/ANS/AGC/Auto Mixer
Output: Frequency divider	Frequency divider: 5, 8, 12 segment PEQ (optional); Delayer; Limiter
Input gain	0/10/20/30/40/43 dB
THD+N	0.003% @4dBu
Frequency response	20~20kHz ±0.2dB
Maximum level	+24dBu
Phantom power	+48V
Dynamic range (analog channel)	113dB
Dynamic range (Dante channel)	115dB
Self-Noise (A-Weighting-analog )	-89dBu
Self-Noise (A-Weighting-Dante )	-91dBu
Common mode rejection ratio @60Hz	80dB
Channel isolation @1kHz	108dB
Input impedance (balanced connection)	9.4KΩ
Output impedance (balanced connection)	102Ω
System delay	<3ms
Power supply	AC110~240V,50Hz/60Hz
Dimension	482 x 260 x 45mm
Weight	3kg
