KQ Series Compact Active Speaker Set

KQ Series Compact Active Speaker Set

  • Model:: KQ-1000
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

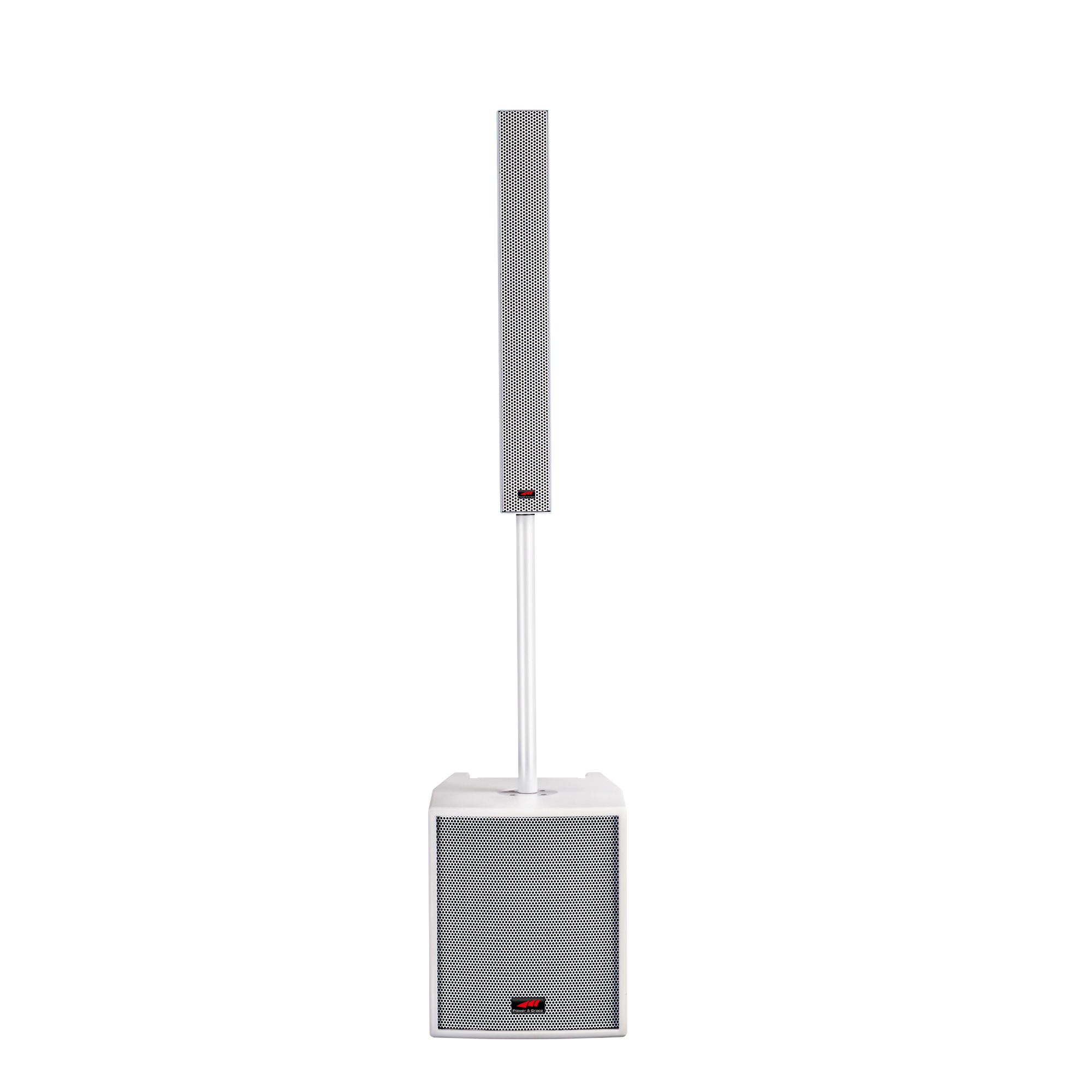

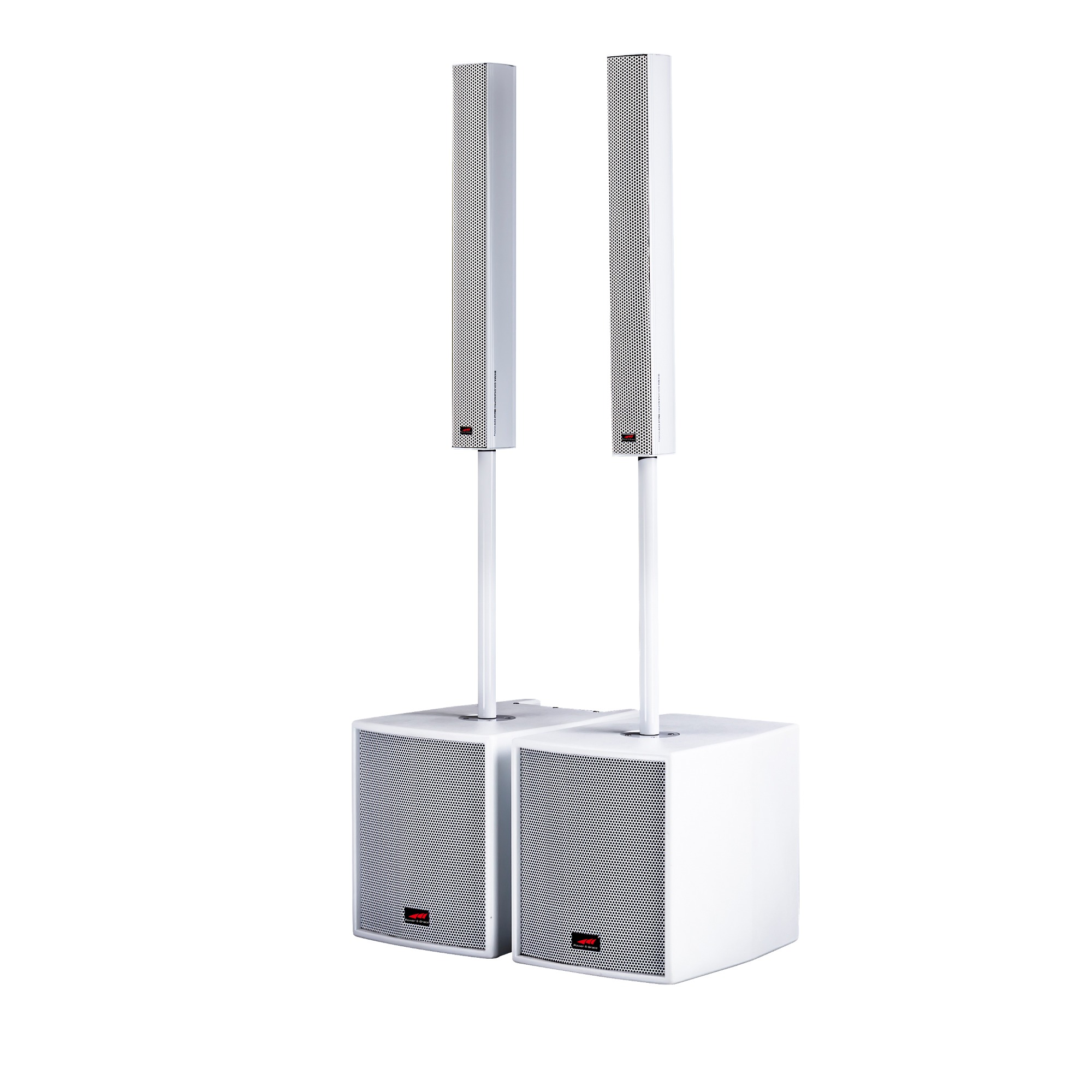

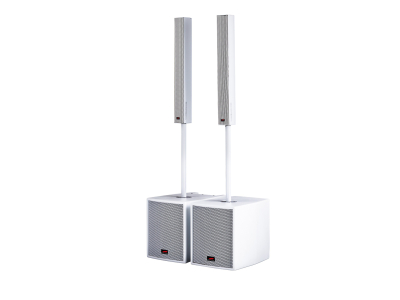

The KQ-1000 is an up-to-dated big power but extra compact active speaker set. The full-range column speaker is coming with sturdy aluminum alloy housing. Excellent impact resisting performance, elegant finishing with glossy PU paint against scratch and smart structure in a very compact package make the speaker ideal for a great variety of applications The subwoofer is equipped with high damping factor woofer component, delivering emphatic and rich lows. Precise port designs not only help the speaker to keep clear and good sound but also lower noise and minimize distortion. User-friendly mounting pole realizes fast connection and optional sound coverage. Music city is surely a smart solution at home or for those public places such as schools, hotels, shops, markets, small parties, etc.


  • The high power SMPS amplifier mounted on the subwoofer is a 3-channel Class-D amplifier with DSP processing.

  • MH limiter protects the column speaker from overload while also produce perfect sound owning to lower distortion near threshold.

  • LC limiter allows tighter low-end punch as more efficient energy is being used but less kicks appear. It will safeguard the speakers against the damage of inharmonic distortion.

  • Subsonic filter protects power amp and speakers from harmful ultra-low frequencies.

  • Optional RCA line input achieves flexible application.

  • Built-in Bluetooth receiver realizes control and listening to music wirelessly.

  • The newly developed, integrated mounting pole enables far more convenient connection and selection of sound coverage angle.



ModelKQ-1000 TOPKQ-1000 SUB
Rated power 180W 250W
Frequency response 100Hz-18KHz 35Hz-250Hz
Impedance6 ohm8 ohm
Input Sensitivity----0.775V
sensitivity95dB(1W/1m)----
Maximum SPL120dB119dB
Low pass frequency----20-250Hz
Protection circuit----Opto-limiter, Subsonic filter
FunctionsBluetooth, USB, SD or TF inputs, FM, record function with digital display and remote controller, different version optional.
Product/Shipping dimension700×94.5×116.5/ 948×318×168(×2)mm350×410×500/ 828×587×502(×2)mm
N.W/G.W7.0kg/15.0kg(×2)19.0kg/40.2kg
