KQ Series Compact Active Speaker Set

KQ Series Compact Active Speaker Set

  • Model:: KQ-800
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

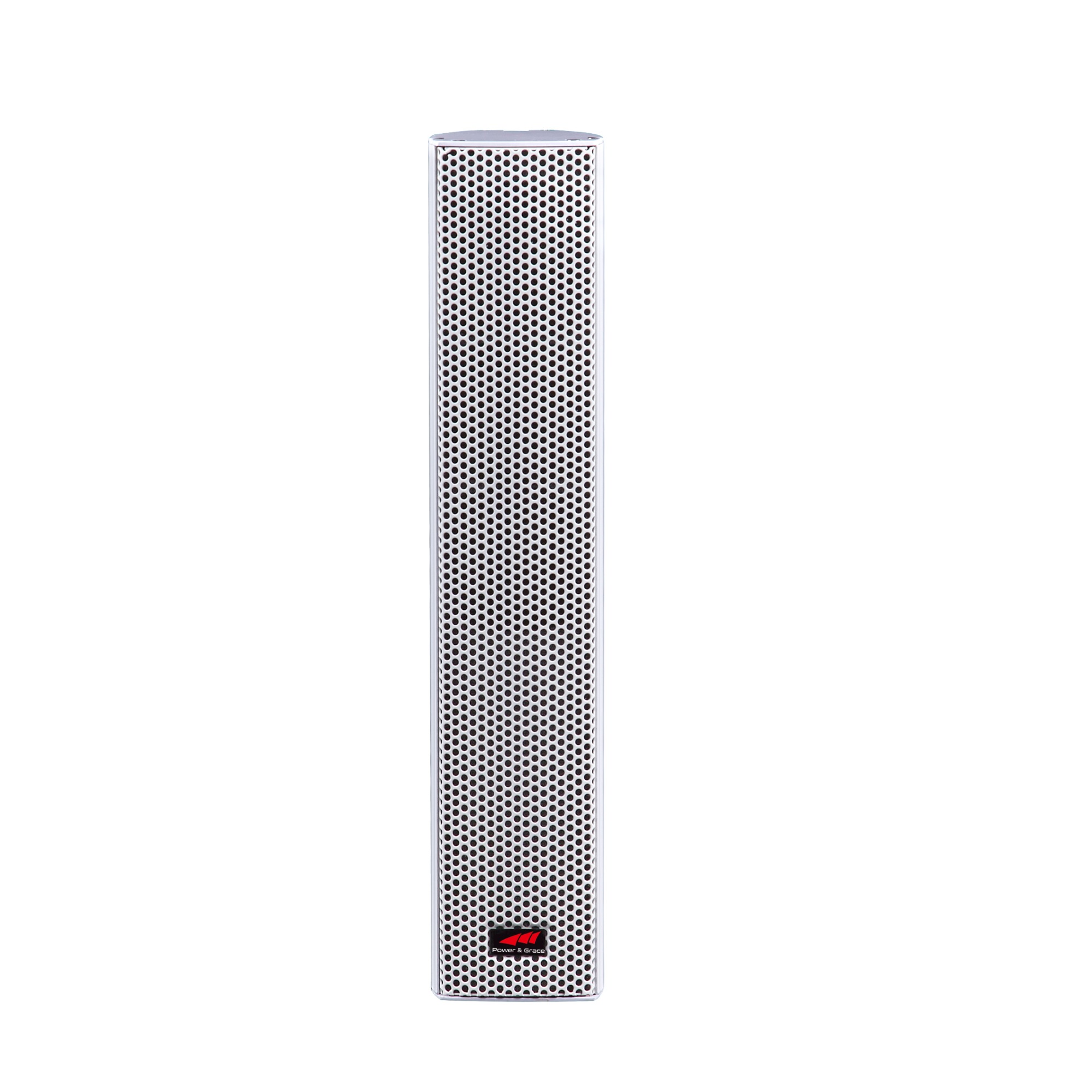

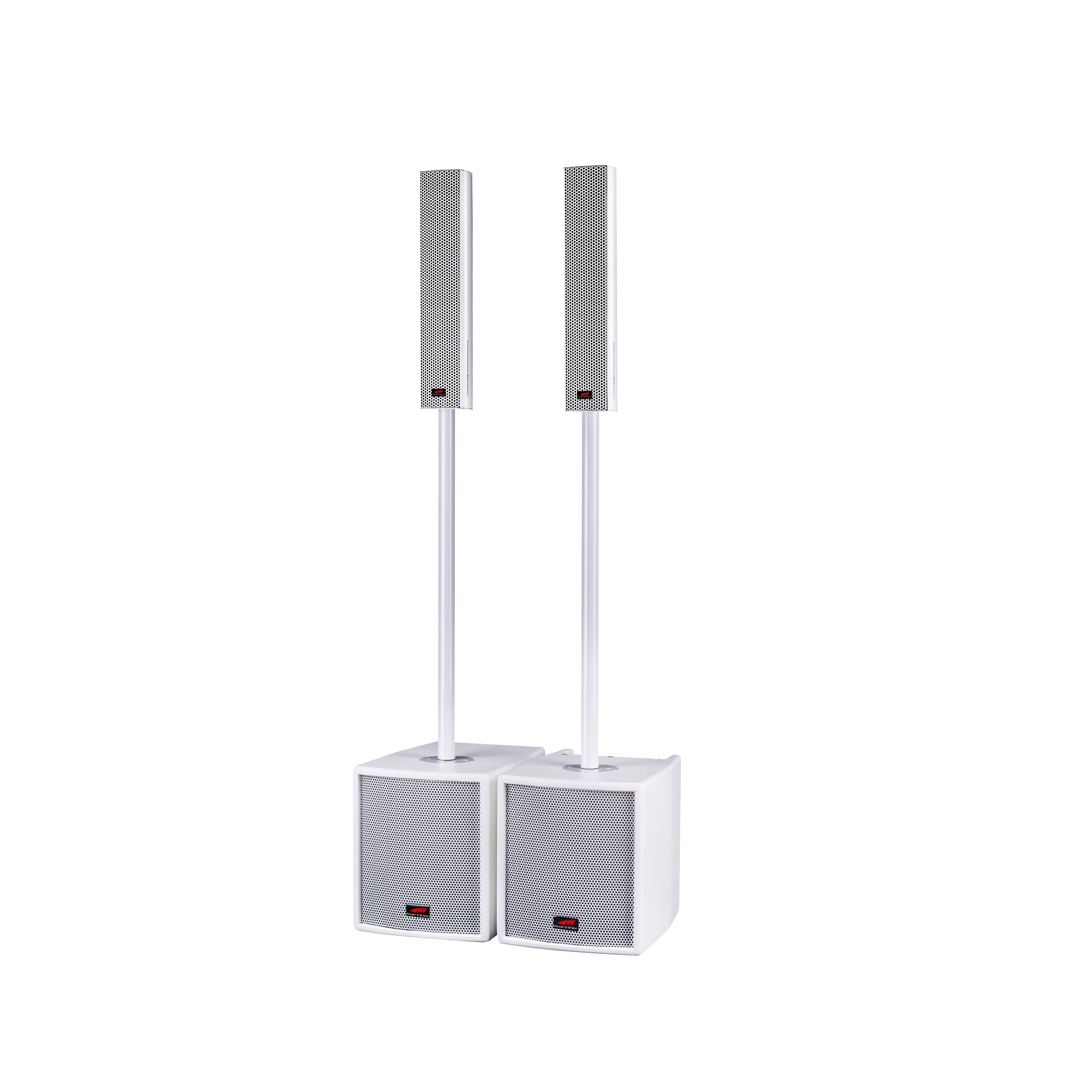

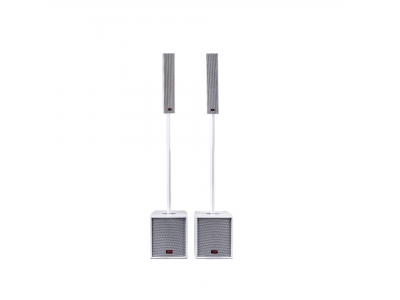

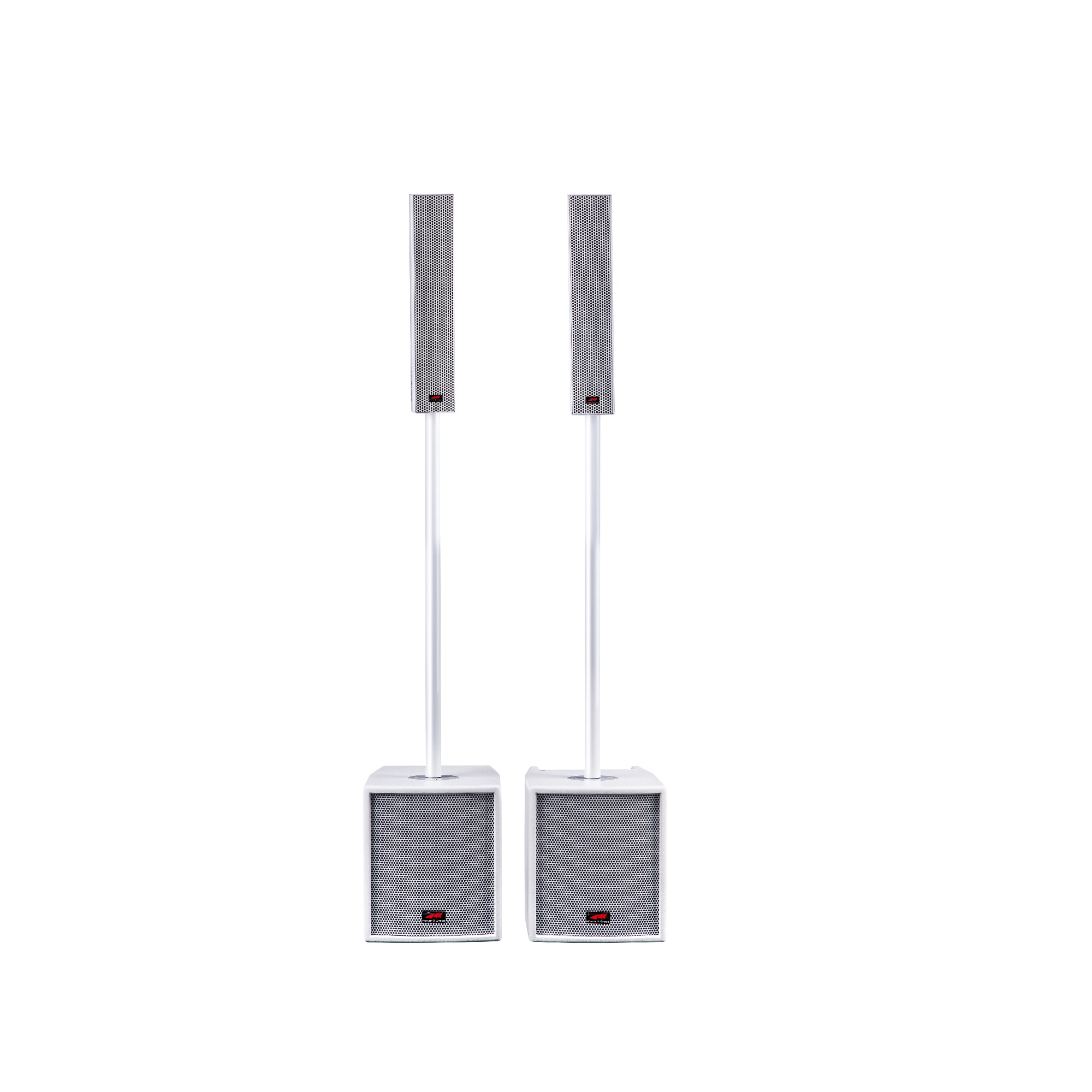

The KQ-800 is an up-to-dated big power but extra compact active speaker set. The full-range column speaker is coming with sturdy

aluminum alloy housing. Excellent impact resisting performance, elegant finishing with glossy PU paint against scratch and smart

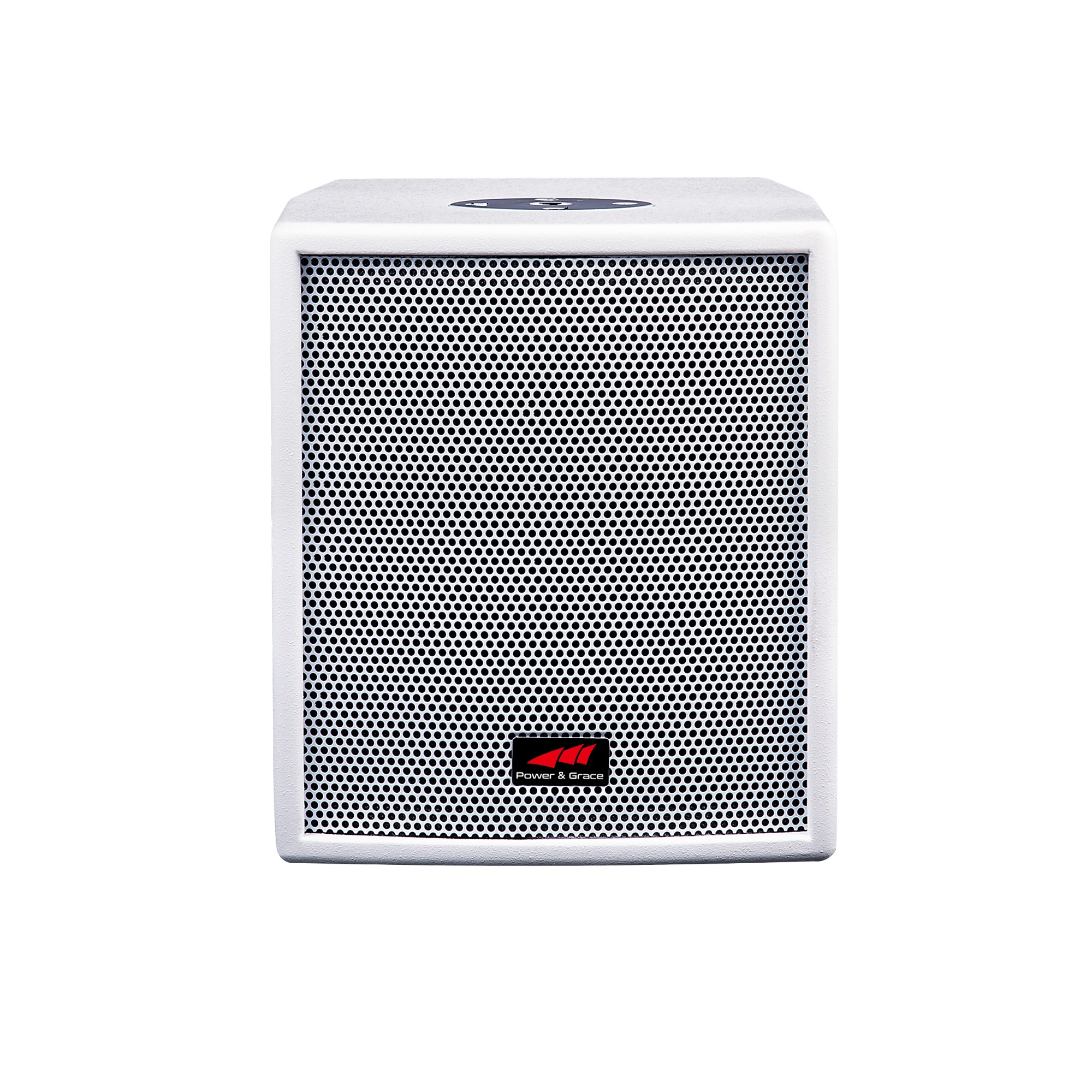

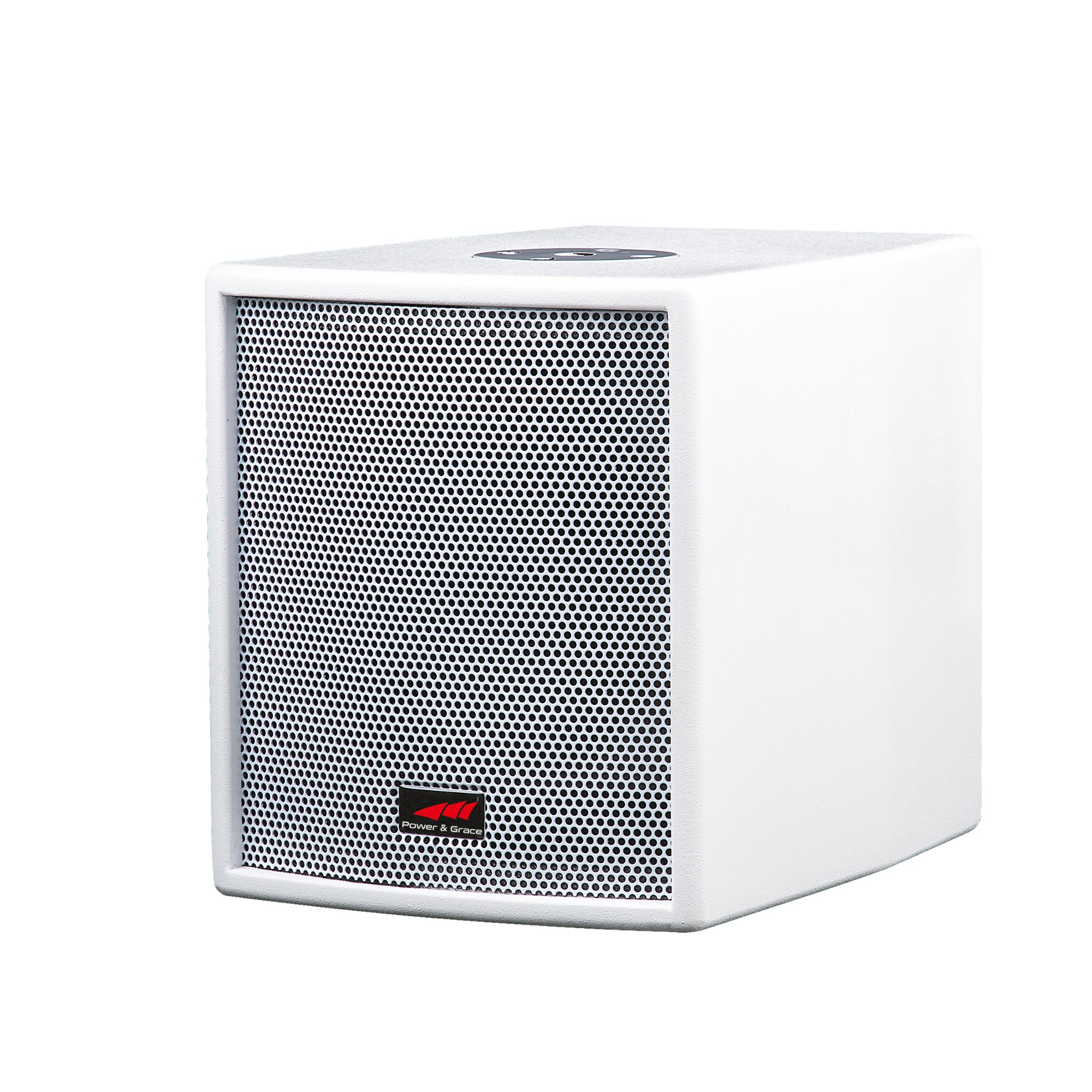

structure in a very compact package makes the speaker ideal for a great variety of applications The subwoofer is equipped with high

damping factor woofer component, delivering emphatic and rich lows. Precise port designs not only help the speaker to keep clear

and good sound but also, lower noise and minimize distortion. User-friendly mounting pole realizes fast connection and optional

sound coverage. Music city is surely a smart solution at home or for those public places such as schools, hotels, shops, markets, small parties, etc.

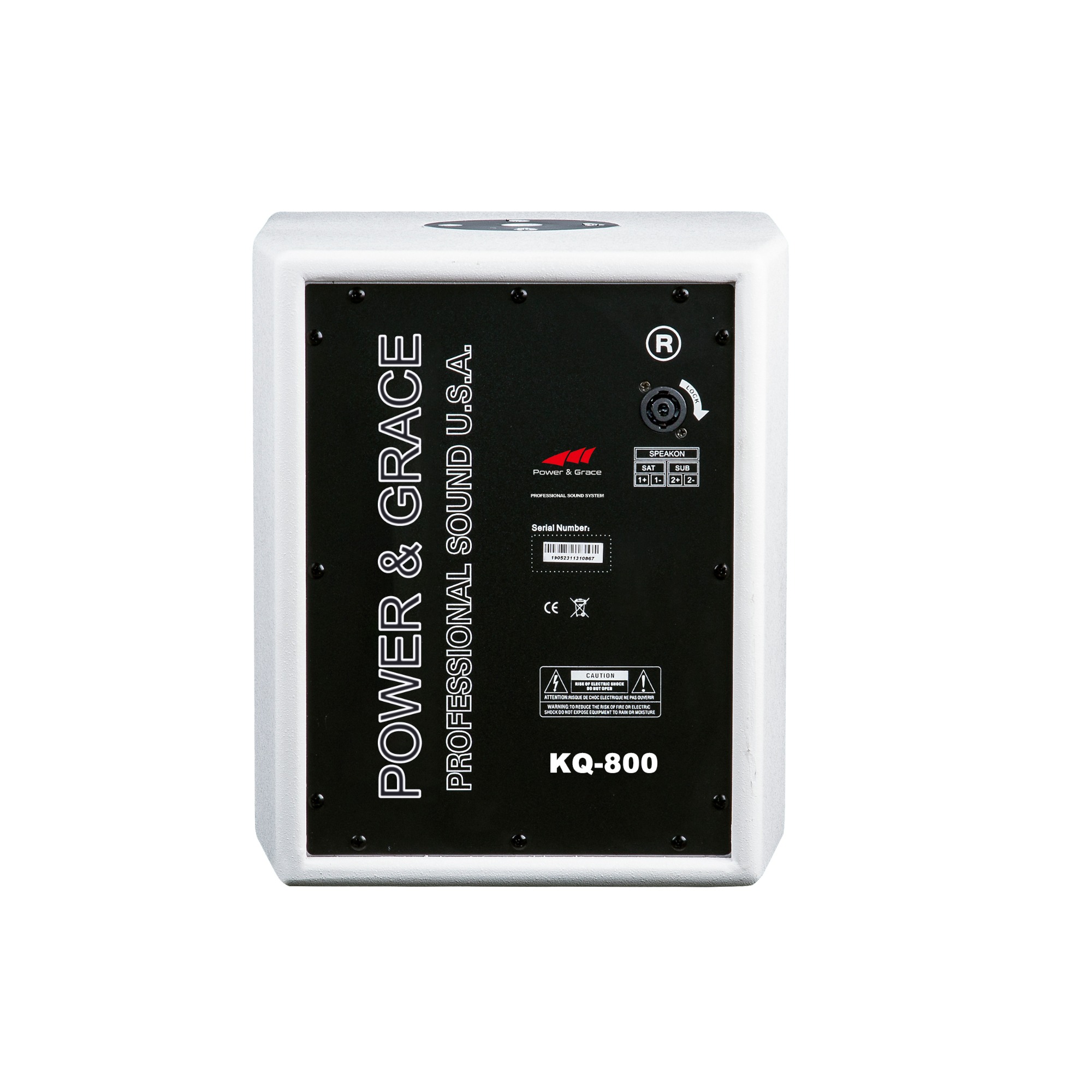

  • The high power SMPS amplifier mounted on the subwoofer is a 3-channel.

  • Class-D amplifier with DSP processing.

  • MH limiter protects the column speaker from overload while also produce perfect sound owning to lower distortion near threshold.

  • LC limiter allows tighter low-end punch as more efficient energy is being used but less kicks appear. It will safeguard the speakers against the damage of inharmonic distortion.

  • Subsonic filter protects power amp and speakers from harmful ultra-low frequencies.

  • Optional RCA line input achieves flexible application.

  • Built-in Bluetooth receiver realizes control and listening to music wirelessly.

  • The newly developed, integrated mounting pole enables far more convenient connection and selection of sound coverage angle.



ModelKQ-800 TOPKQ-800 SUB
Type Column Speaker with BluetoothSubwoofer
Rated power 50W 200W
Frequency response 180Hz-18KHz 40Hz-250Hz
Impedance16 ohm8 ohm
Input Sensitivity----0.775V
sensitivity81dB(1W/1m)----
Maximum SPL101dB114dB
Low pass frequency----20-250Hz
Protection circuit----Opto-limiter, Subsonic filter
FunctionsBluetooth, USB, SD or TF inputs, FM, record function with digital display and remote controller, different version optional.
Product/Shipping dimension467×94.5×116.5/ 203×168×1038(×2)mm290×330×400/ 709×487×422(×2)mm
N.W/G.W2.5kg/3.5kg11.0kg/12.0kg
