Active Arrayable Column Speaker
Active Arrayable Column Speaker
Active Arrayable Column Speaker
Active Arrayable Column Speaker
Active Arrayable Column Speaker

Active Arrayable Column Speaker

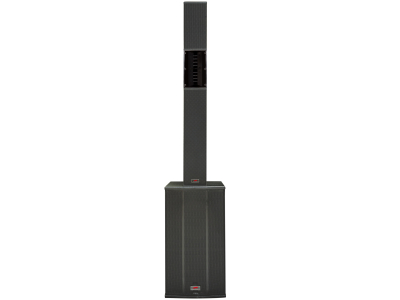

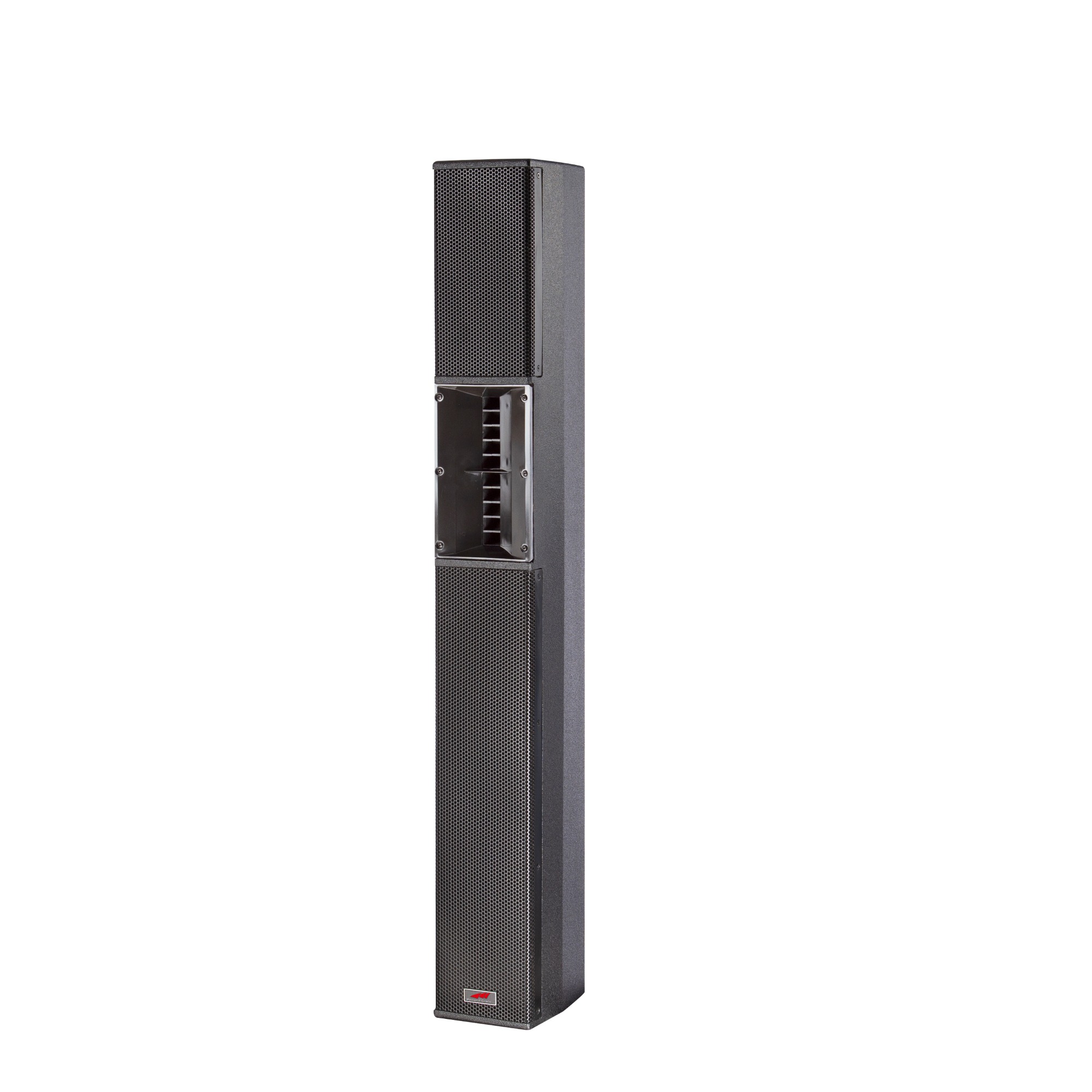

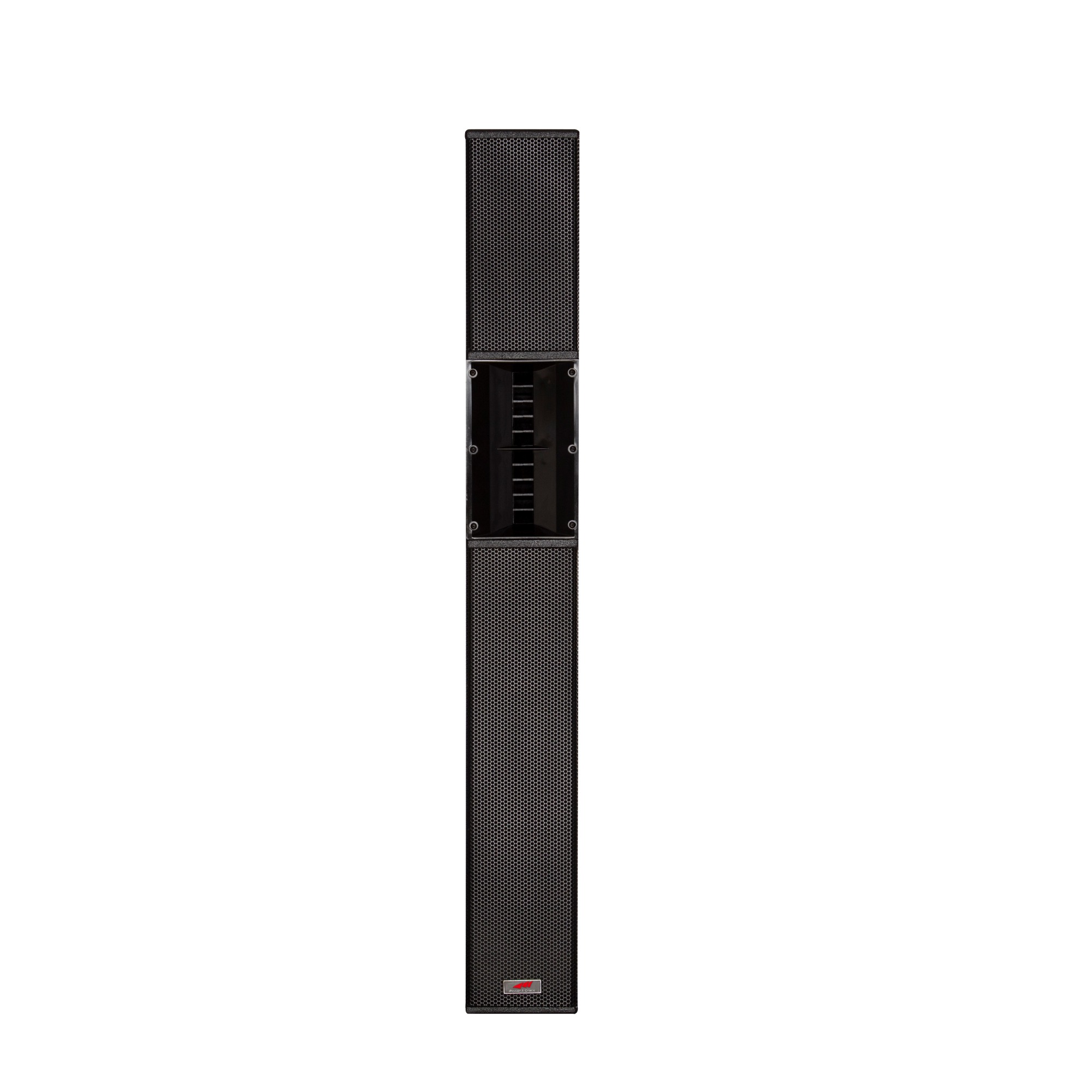

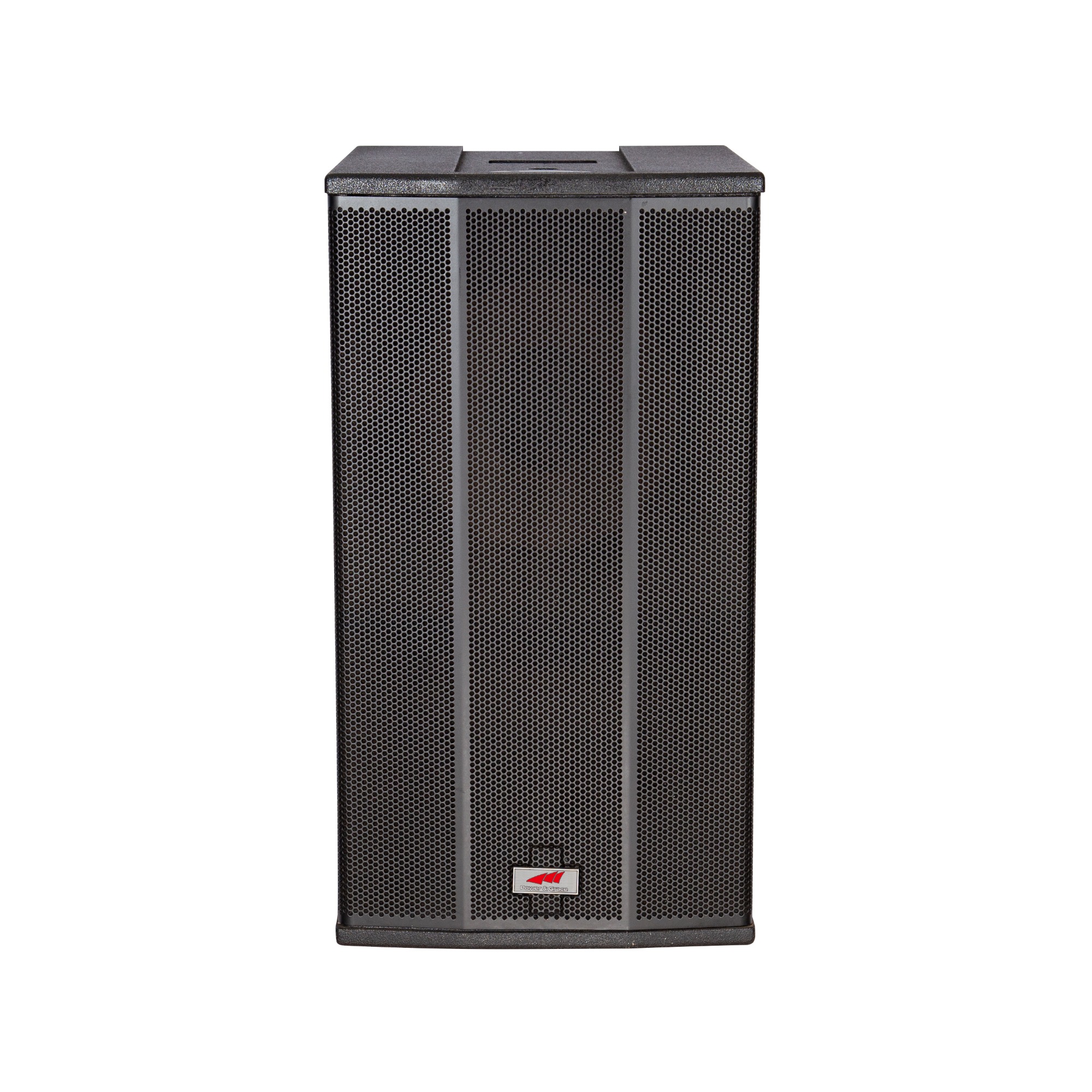

KQ-5 TOP and KQ-5 SUB are a colinear sound system newly launched by Power And Grace. KQ-5 SUB features vented bass enclosure with two 13.5 inch long-thrown woofers, providing low frequency contour and

  • Model:： KQ-5
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

KQ-5 TOP and KQ-5 SUB are a colinear sound system newly launched by Power And Grace. KQ-5 SUB features vented bass enclosure with two 13.5 inch long-thrown woofers, providing low frequency contour and extended bandwidth to KQ-5 TOP, delivering heavy low but also rich mid, tailed for KQ-5 speaker as a stunning sound system. It can easy and fast ground stack setting up with KQ-5 SUB. KQ-5 TOP can be stacked as a standalone system or secured onto one of its LF extensions. It is a very versatile sound system for different kinds of applications. It is also a good system for portable sound or live sound.


  • Italian high-end drivers.

  • King Kong sand paint fnishing for anti-scratches and anti-collision.

  • Built- in dual channel class-D amplifer with DSP control ensures big dynamic but extra compact system.

  • Colinear source design.

  • Fast rigging hardware.

  • Designed according to the golden ratio of ear hearing.

  • Equipped multiple rigging points, wall mounting and flying are possible.


MODEL

KQ-5 TOP

KQ-5 SUB

Frequency response

90Hz-19KHz

45Hz-280Hz

Drivers

Hi: 2x1 "compression driver Low:6x5"(25mm voice coil)

2x13.5”(80mm voice coil)

Directivity angle

H100° xv10

---

Impedance

6 ohm

4 ohm

Long-term power(RMS)

400w

700w

Power peak

800w

1400w

Maximum SPL

127dB

134dB

Power supply

----

AC 110v-240V 750Hz

Output power

----

500W+1000w

PC interface

----

One USB interface on front panel DSP

Connector

1x4-pin Speakon

2XLR+1x4-pin Speakon+l Powercon

Product/shipping dimension(WxDxH)

1160x198x150/

1210x390x430mm

385x545x700mm

1210x390x430mm

N.W/G.W

16.0kg/ 46.0kg(x2)

42.0kg/102.0kg(x2)
