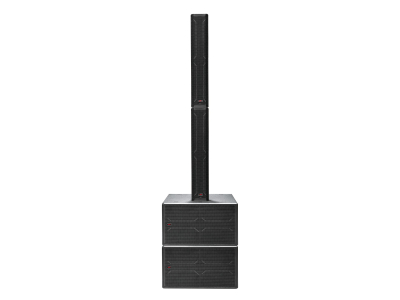

Active Arrayable Column Speaker
X6 is an arrayable active column speaker set newly launched by Power And Grace. The speaker had been refined until it delivers a constant sound coverage in a wide frequency range. Special horn design
- Model:: KQ-6
X6 is an arrayable active column speaker set newly launched by Power And Grace. The speaker had been refined until it delivers a constant sound coverage in a wide frequency range. Special horn design

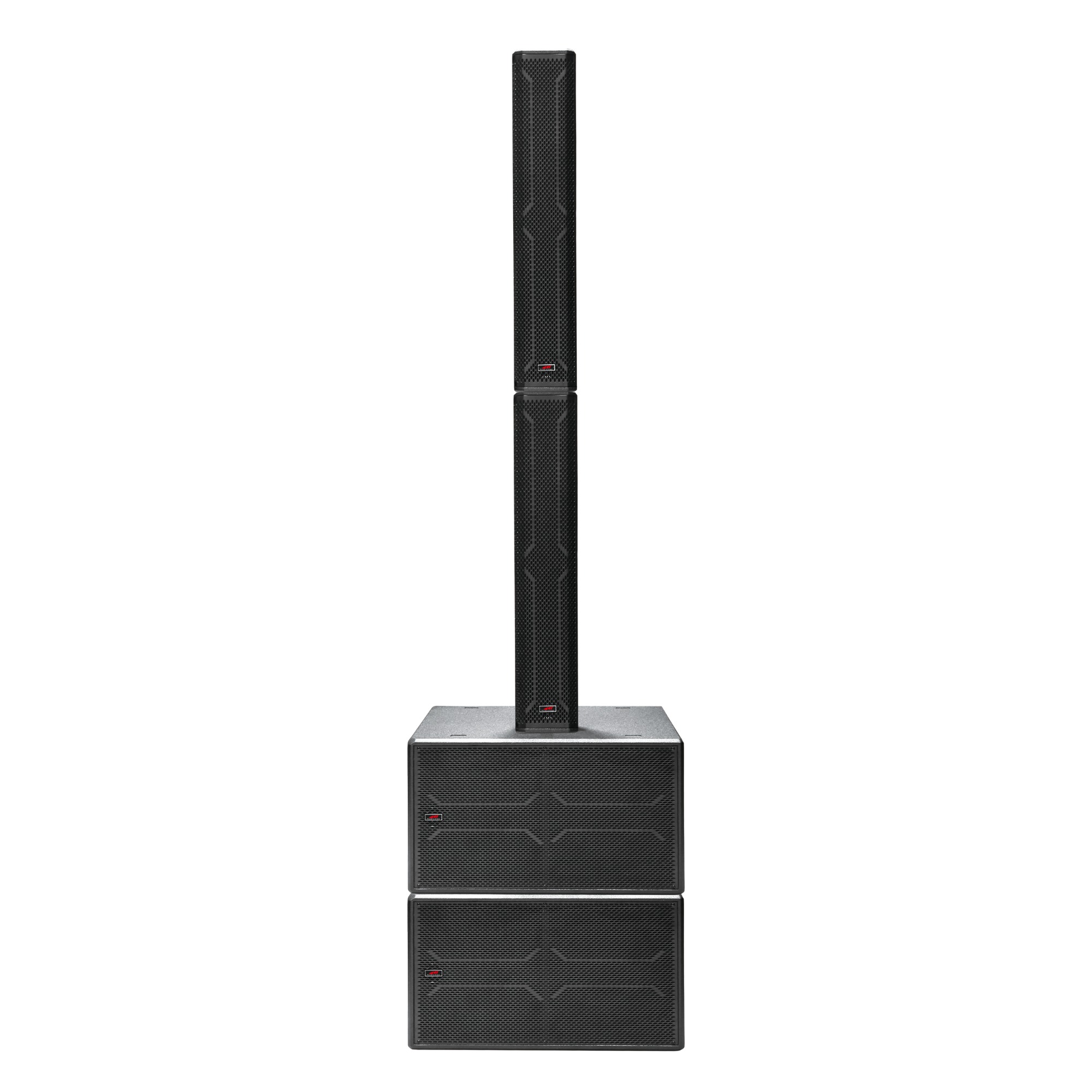

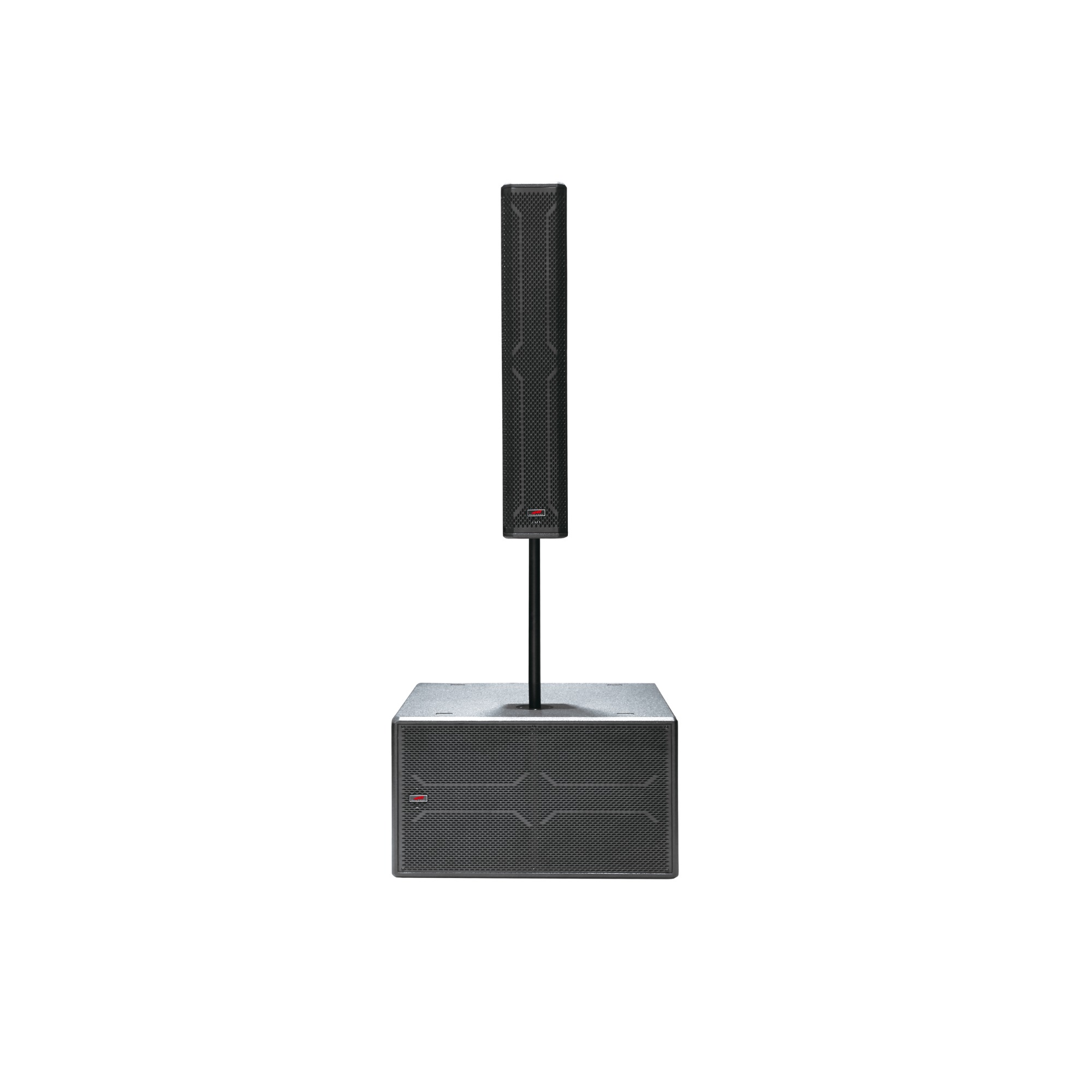

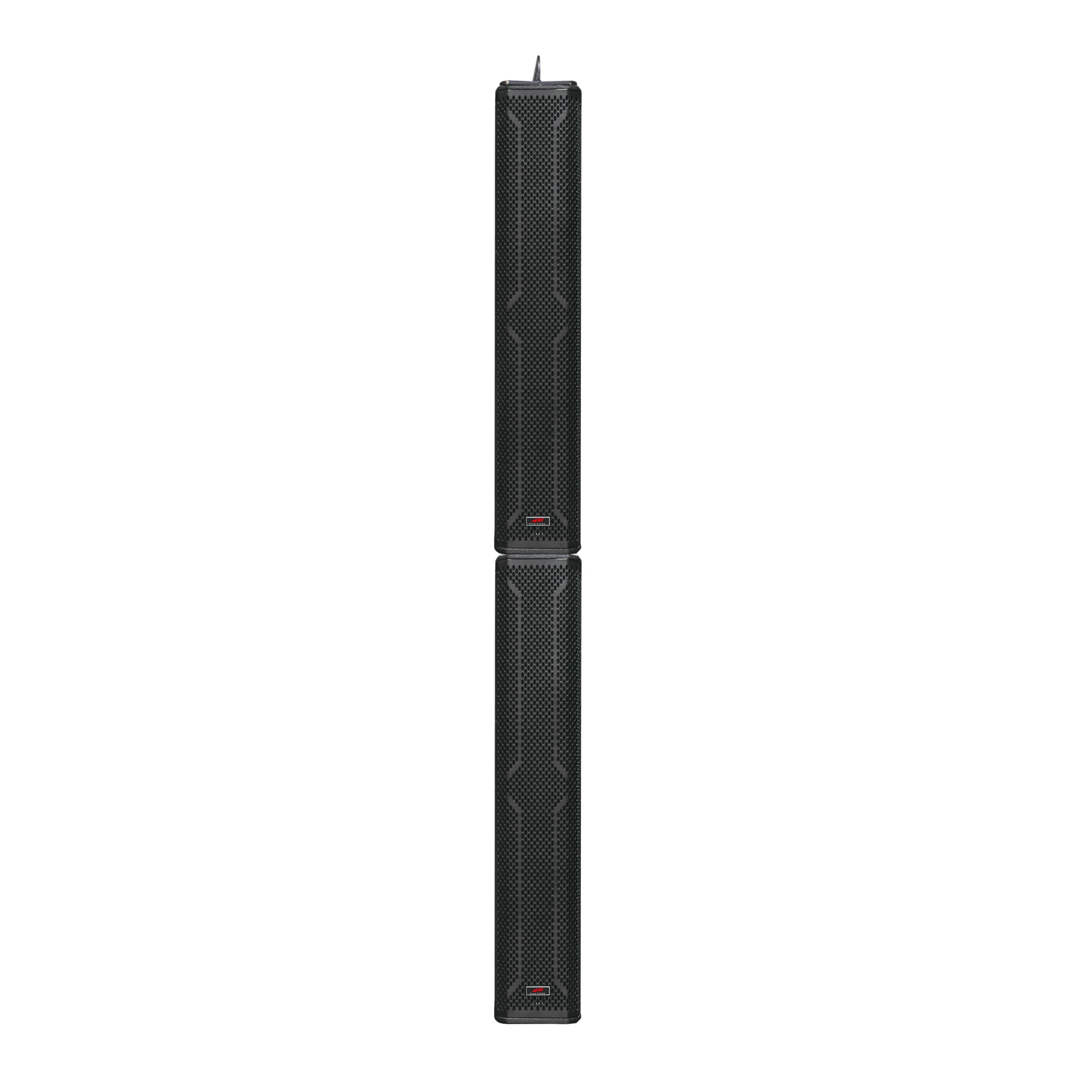

KQ-6 is an arrayable active column speaker set newly launched by Power And Grace. The speaker had been refined until it delivers a constant sound coverage in a wide frequency range. Special horn design also allows two KQ-6 TOP column speakers stacking up for stronger sound reproduction.

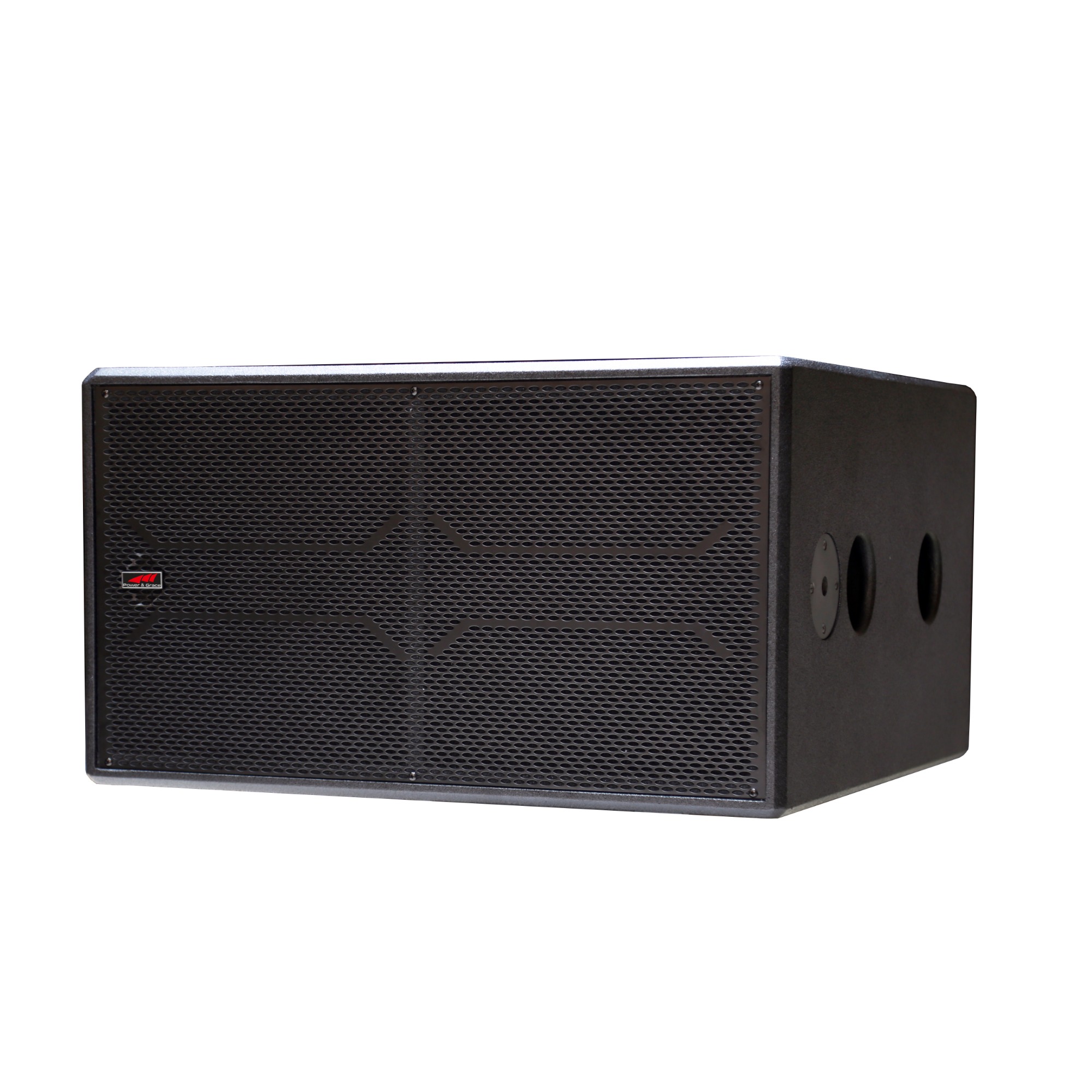

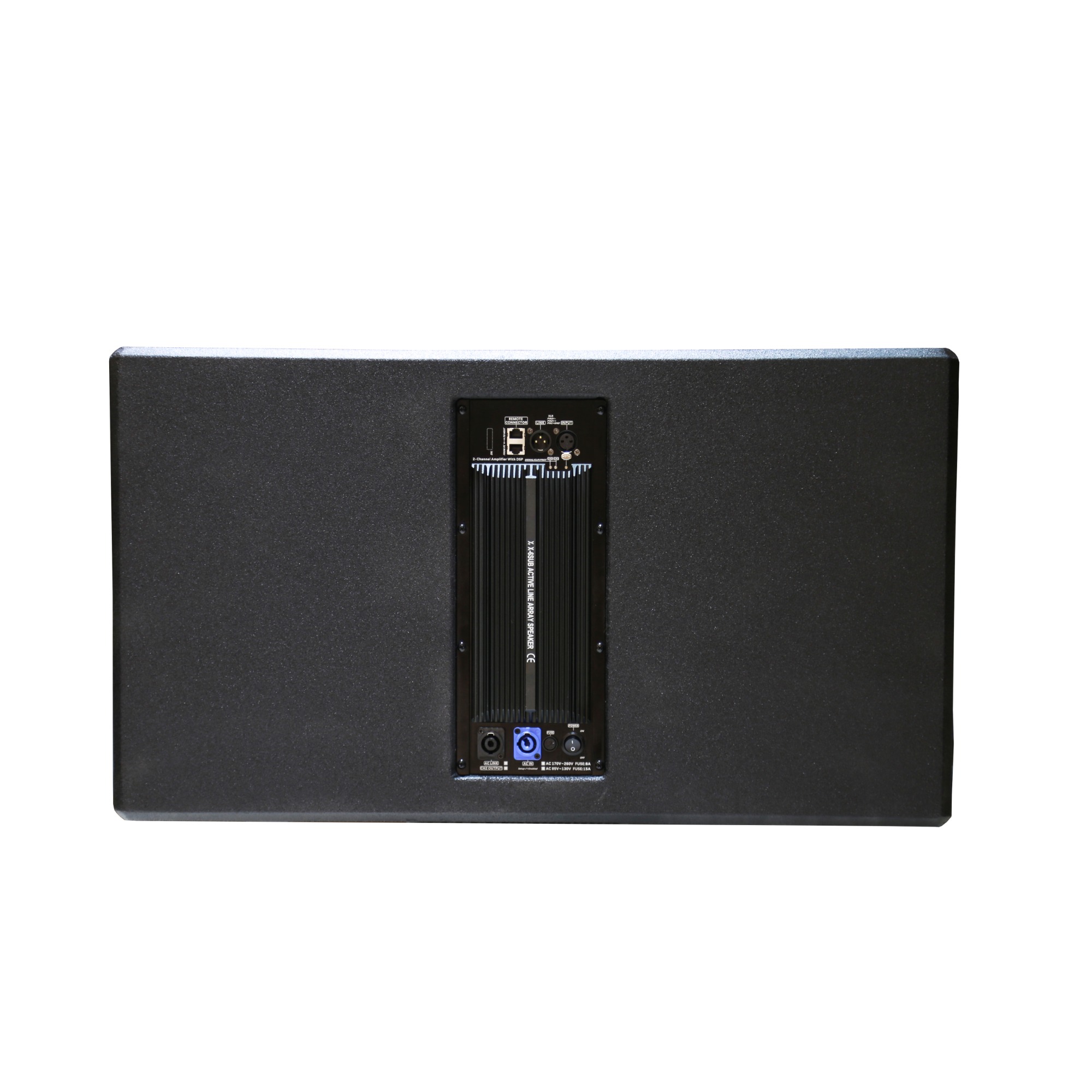

KQ-6 SUB, the subwoofer, adopts compressed cabinet design with 2pcs 15” long-thrown woofers. It produces high power bass for the entire sound system. A high performance 2-channel amplifier with built-in DSP processor houses at the back of the subwoofer. Stunning cabinet design provides unprecedented mounting, flying, arraying and permanent installation flexibility making it suitable for either installation or touring live sound application.
Applications: rental, wedding ceremony, touring sound, function halls, indoor sports center, medium and small sized sound reinforcement.
Features:
KQ-6 TOP
l All neodymium drivers, light weight but higher power
l King Kong sand paint finishing for anti-scratches and anti-collision
l 4pcs of 6" woofers and 2pcs of 34mm tweeters
l Line array sound dispersion
l Easy and quick setting up
l Either single application or multiple speakers combination

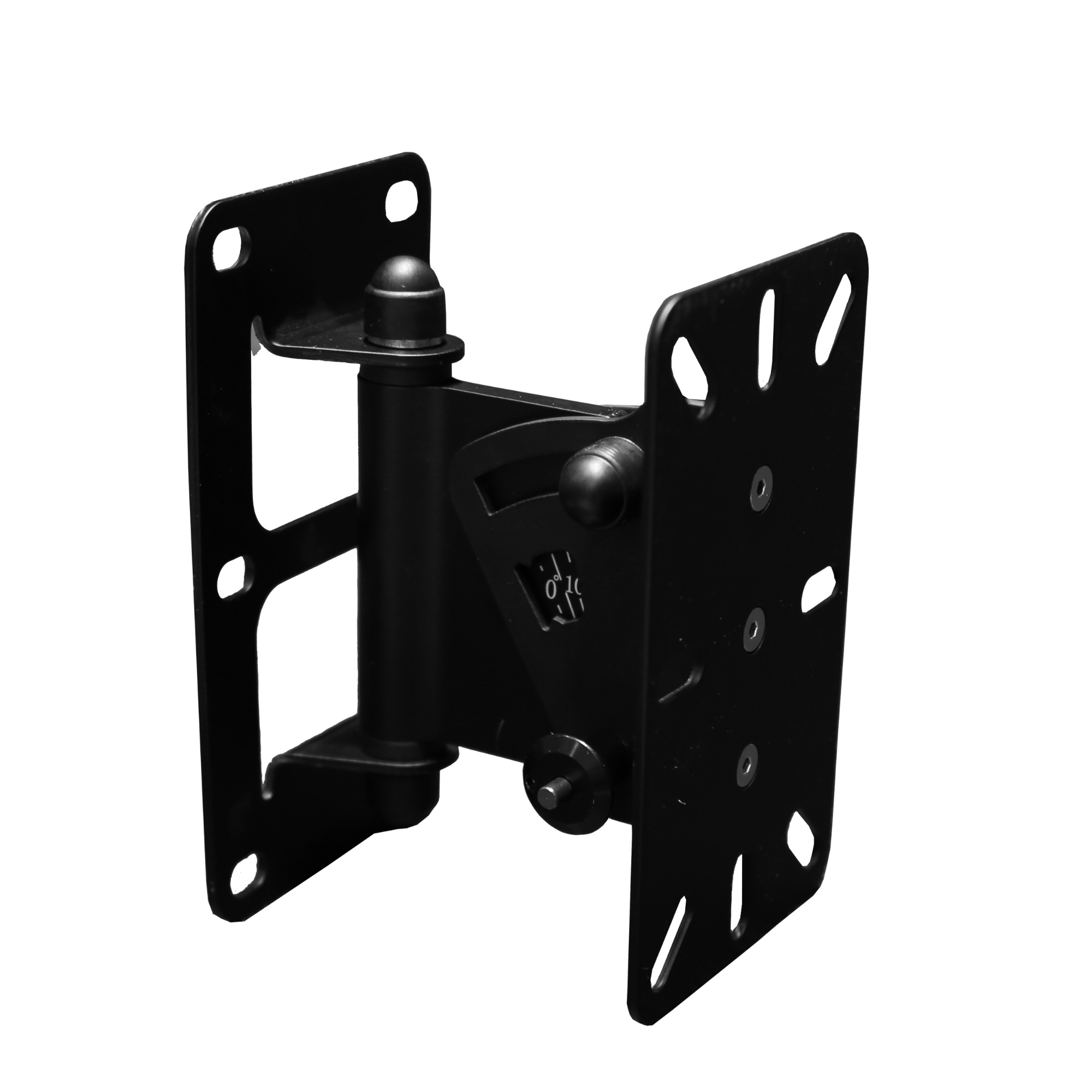

l Multi eyebolts optional for stacking or flying
KQ-6 SUB
l Compressed cabinet design for stronger bass output
l King Kong sand paint finishing for anti-scratches and anti-collision
l 2pcs of 15" high power long-thrown woofers
l Multiple mounting options
l High performance class D amplifier
l Multi-user modes
l Built-in DSP
Model | KQ-6 TOP | KQ-6 SUB |
Frequency response | 80Hz-19KHz | 40Hz-320Hz |
Driver | Hi:2x1"compression driver Low:4x6.5(38mm voice coil | 2x15"(75mm voice coil)
|
Directivity angle | H100°xV10° | --- |
Sensitivity | 98dB | 103dB
|
Impedance | 8ohm | 4 ohm
|
Long-term power | 500W | 1000W
|
Power peak | 1000W | 2000W |
Maximum SPL | 128dB | 135dB |
Connector | 2x4-pin Neutrik Speakon | XLR+SPEAKON |
Power supply | --- | AC 110V-240V/50Hz |
Amplifier power | --- | 8ohms:700W+1000w |
Amplifier connector | --- | One USB interface on front panel DSP |
Dimensions(WxDxH) | 195x246x990(1050x459x306)mm | 800x750x450(810x510x860)mm |
N.W/G.W | 14.5kg/32kg(2pcs each carton) | 59.5kg/63.7kg |
