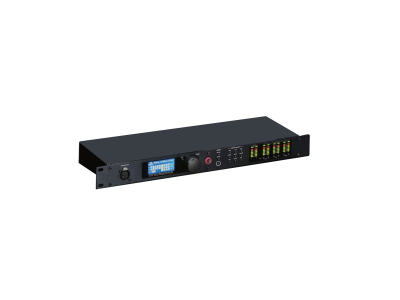

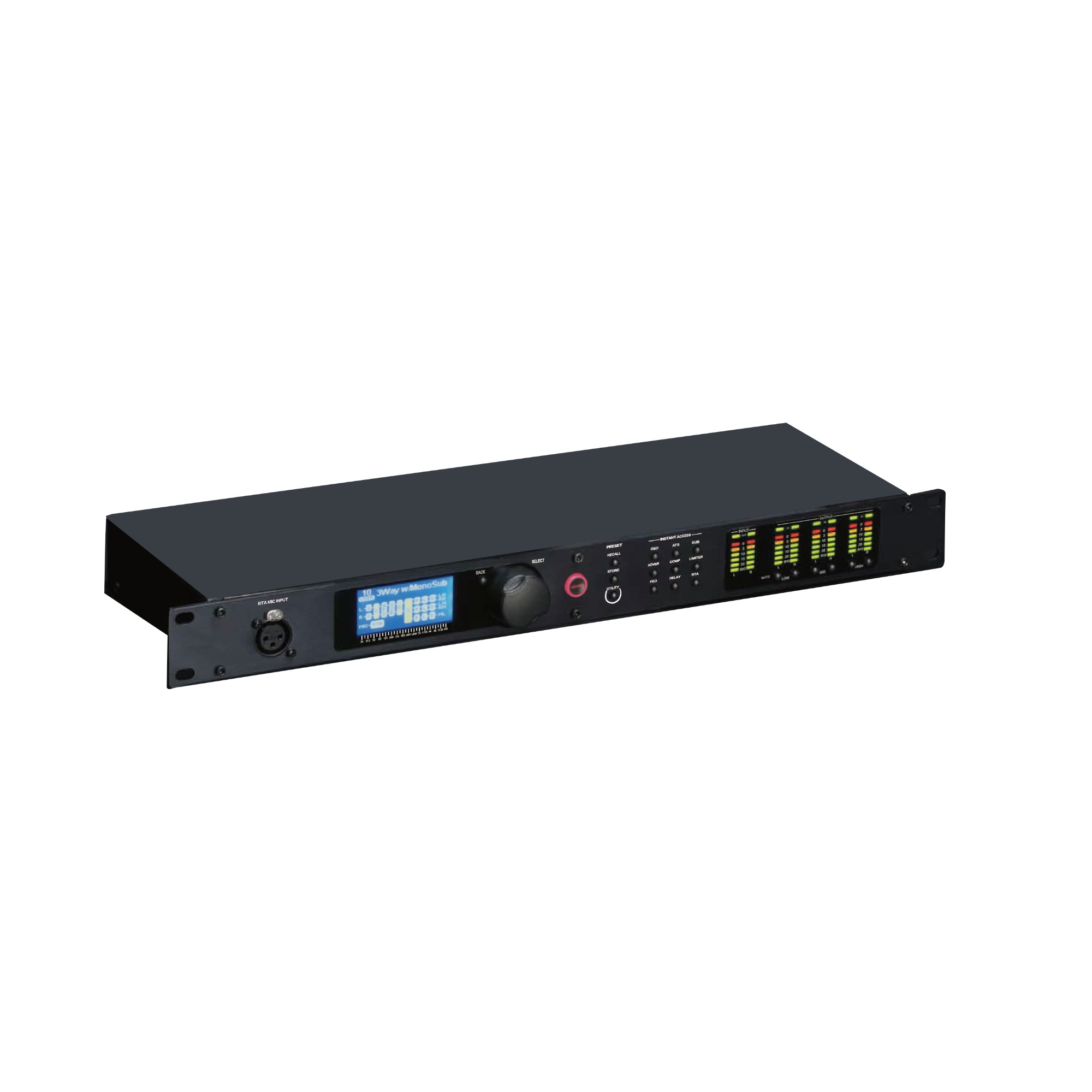

Loudspeaker Management System DriveRack PA
Loudspeaker Management System DriveRack PA
Loudspeaker Management System DriveRack PA

Loudspeaker Management System DriveRack PA

The DriveRackPA was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. The DriveRack products provide the tool

  • Model:： DriveRackPA
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

The DriveRackPA was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. The DriveRack products provide the tools that ensure that thesystem sounds its very best. The DRIVERACKPA provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications.

FEATURES

  • Feedback Elimination

  • 2.7 Seconds of Alignment and Zone Delay

  • Classic dbx Compression and Limiting

  • Graphic and Parametric EQ

  • Auto-EQ Function

  • Full Bandpass, Crossover, and Routing Configurations

  • Auto Gain Control

  • Pink Noise Generator and fulltime RTA



Model DRIVERACKPA

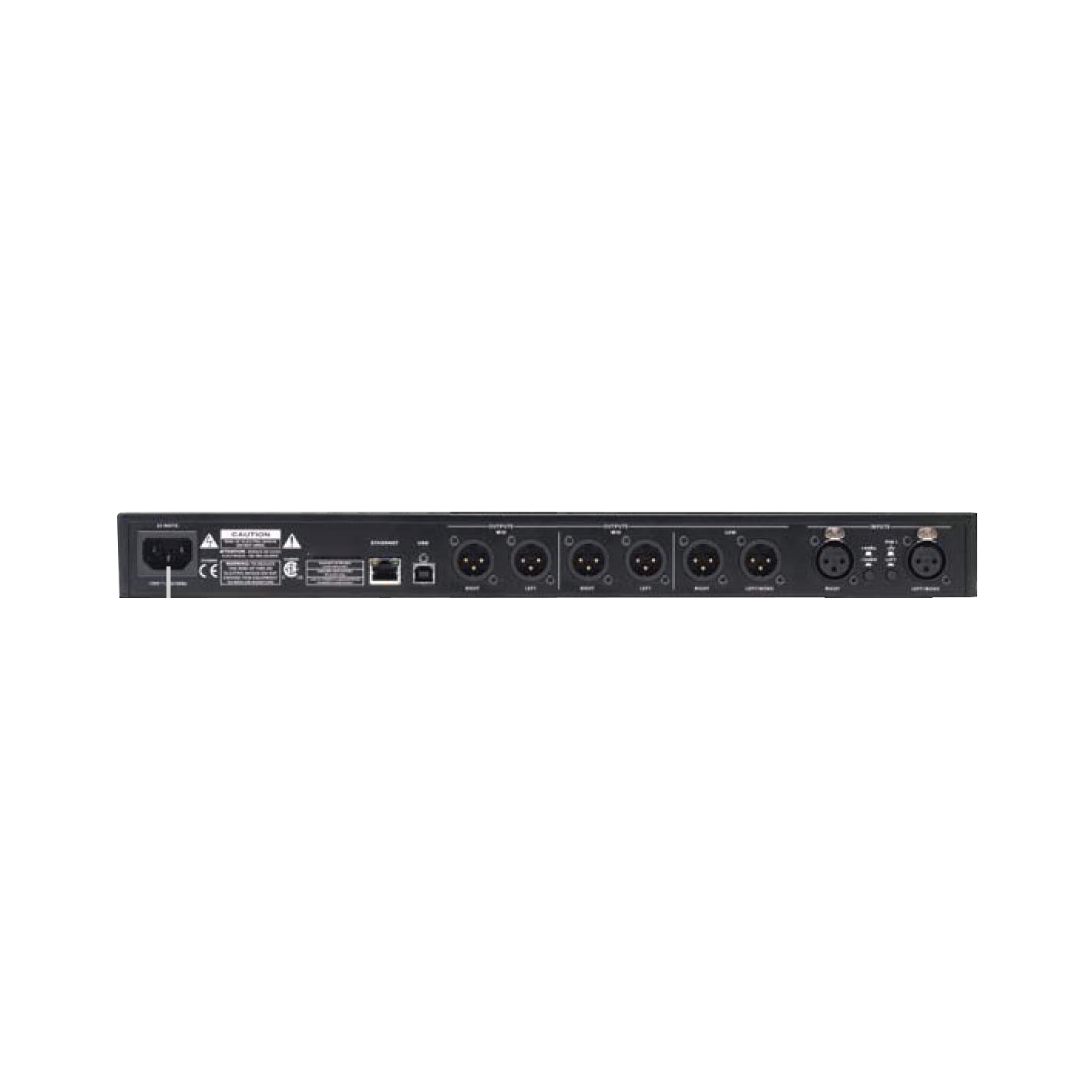

Analog output
Number of outputs: 6-wire output
Connector XLR male plug
Type Electronic balance, RF filtering
Impedance 1202
Maximum output level +20dB
Quasi-delay up to 10 ms per output channel
A/D performance
A/D dynamic range 24-bit A/D converter with dbx type IVTM conversion system +112dB -110dB
Type IV dynamic range +123 dB with transient material, +22khz, 121dB (without weighting material), 22khz 115db standard configuration, program material, +22khz
D/A converter 24 bits
Dynamic range +112db -110db
System performance 32-bit floating point
Internal processing word length 48 kHz
Sampling rate +110 dB -107 dB
Dynamic range Typical value is 0.003% + 4 dBu, 1 khz, 0 dB
THD+Noise 20 hz-20 kHz, + 0 /- 0. 5 dB
Gain frequency response: Crosstalk between signal channels 1.847 ms, <- 110 dB, -120 dB (input and output: -100 dB)
Delay: input and output 100-120 Volts 50/60 Hz or 220-240 Volts AC 50/60 Hz
Power supply operating voltage Power consumption: 22 Watts
Net weight 2.4 kg
Gross weight 3.1 kg
Dimensions (HxDxW) 44x146x483mm
