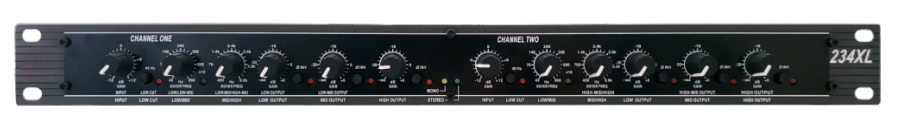

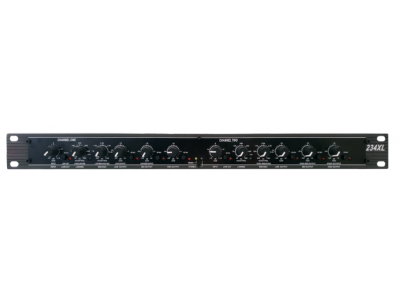

Stereo 2/3 Way, Mono 4-Way Crossover with XLR Connectors 234XL
Stereo 2/3 Way, Mono 4-Way Crossover with XLR Connectors 234XL

Stereo 2/3 Way, Mono 4-Way Crossover with XLR Connectors 234XL

FEATURESXLR balanced ins and outsMode switches for mono 4-way or stereo 2-way/3-way operationTRS or XLR balanced input and output differential pair.Stereo sound or ultra-low sound synthesized by addin

  • Model:： 234XL
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

FEATURES

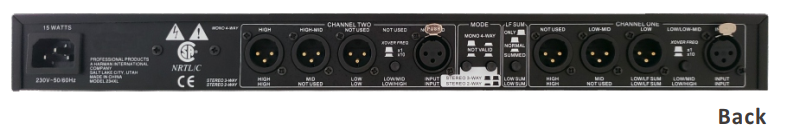

  • XLR balanced ins and outs

  • Mode switches for mono 4-way or stereo 2-way/3-way operation

  • TRS or XLR balanced input and output differential pair.

  • Stereo sound or ultra-low sound synthesized by adding left and right channels.

  • x10 range switches and a 40Hz high pass filter (low-frequency cut) on both channel.

  • All outputs have phase reversal switches. (The output level on all frequency range can be independently adjusted by dB/oct Linkwitz-riley filter.)

  • LED indicator of Stereo/Mono mode.
