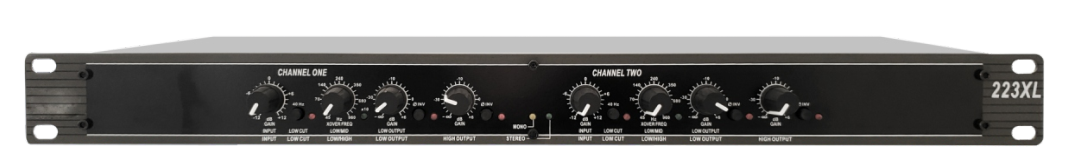

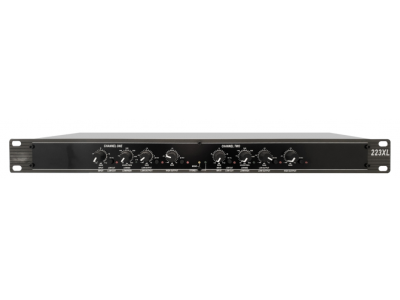

Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors 223XL

FEATURESXLR balanced ins and outsMode switch for stereo 2-way or mono 3-way operationTRS or XLR balanced input and output differential pair.Stereo sound or ultra-low sound synthesized by adding left a

Model:： 223XL

Quote

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

FEATURES

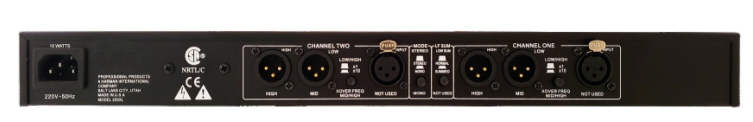

XLR balanced ins and outs
Mode switch for stereo 2-way or mono 3-way operation
TRS or XLR balanced input and output differential pair.
Stereo sound or ultra-low sound synthesized by adding left and right channels.
x10 range switches and a 40Hz high pass filter (low-frequency cut) on both channel.
All outputs have phase reversal switches. (The output level on all frequency range can be independently adjusted by dB/oct Linkwitz-riley filter.)
LED indicator of Stereo/Mono mode.

MetInfo enterprise content manager system | MetInfo CMS 223XL.pdf

Back to list

Stereo 2-Way/Mono 3-Way Crossover with XLR Connectors 223XL
