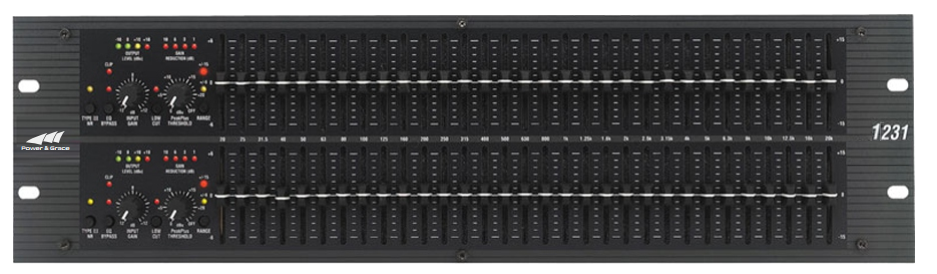

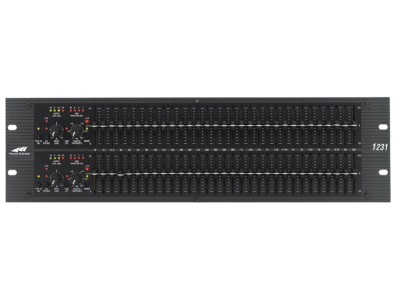

Dual channel 31 band Graphic Equalizer 1231
Dual channel 31 band Graphic Equalizer 1231

Dual channel 31 band Graphic Equalizer 1231

CHARACTERISTIC This EQ Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides stand

  • Model:： 1231
Quote
Close
Enter your details and submit
We'll aim to get back to your with a quote within 24hrs

CHARACTERISTIC

This EQ Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features.

FEATURES


  • Switchable boost/cut ranges of ±6 or ±15 dB

  • Electronically balanced/unbalanced inputs

  • Servo balanced/unbalanced outputs

  • RF filtered inputs and outputs

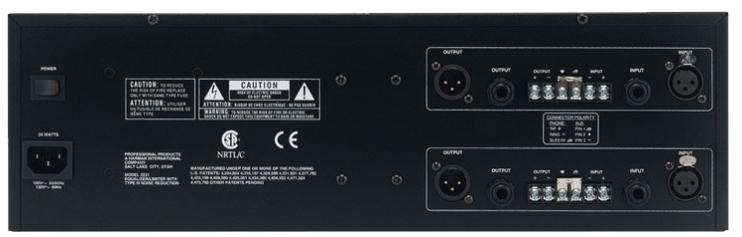

  • XLR, Barrier Strip, and 1/4" TRS connectors

  • -12dB/+12dB input gain range

  • 18dB/octave 40Hz Bessel low-cut filter

  • Chassis/signal ground lift capability

  • Internal power supply transformer Power-off hardwire relay bypass with 2-second power-up delay

MetInfo enterprise content manager system | MetInfo CMS

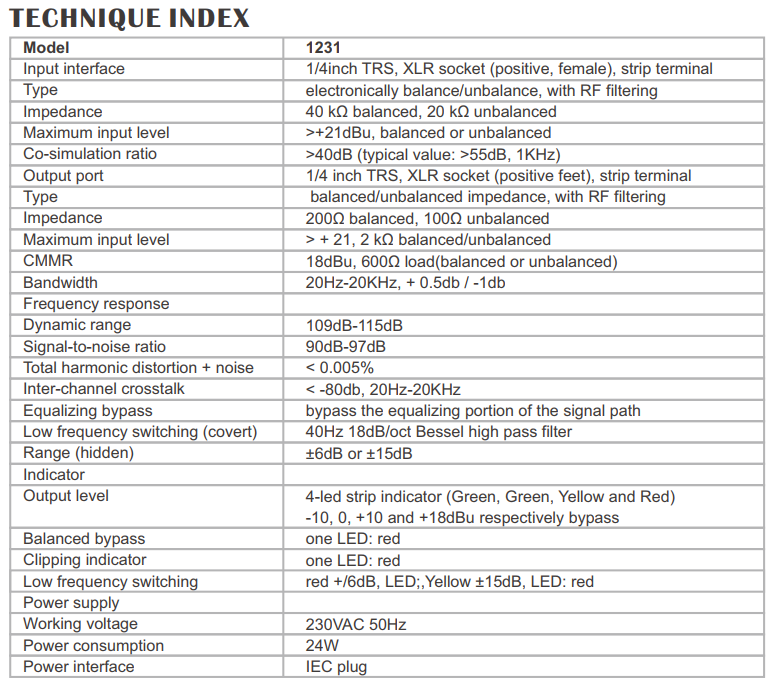

MetInfo enterprise content manager system | MetInfo CMS1231.pdf
